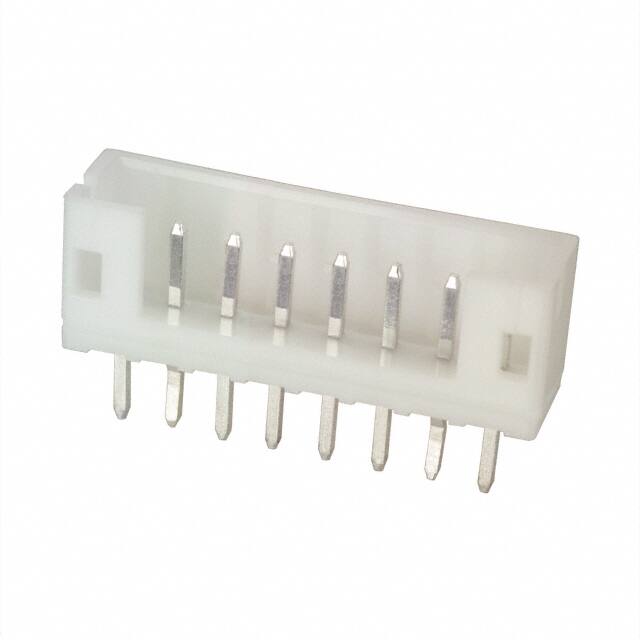

B8B-PH-K-S

Specifications

ECCN Kodu

EAR99

Insulation Color

Natural

Seri

PH

Çalışma Sıcaklığı

-25°C~85°C

Ul Flammability Code

94V-0

Contact Shape

Square

Housing Material

Nylon

Additional Feature

TOP ENTRY

Insulation Height

0.236 6.00mm

Lead Pitch

2mm

Pozisyon Sayısı

8

Gender

Male

REACH Uyumluluk Kodu

unknown

Number Of Positions Loaded

All

Test Voltage

800V

Terminal

Press-Fit, Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Contact Lengthmating

0.130 3.30mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Filter Feature

NO

Material Flammability Rating

UL94 V-0

Insulation Materials

Polyamide (PA66), Nylon 6/6

Din Conformance

NO

Overall Contact Length

0.333 8.45mm

Kurşunsuz

Contains Lead

Contact Finish Mating

Tin-Lead

RoHS Durumu

Non-RoHS Compliant

Fastening Type

Detent Lock

JESD-609 Kodu

e3

Montaj Tipi

Through Hole

Nominal Gerilim

100V

Iec Conformance

NO

Yayın Yılı

2005

Contact Resistance

10mOhm

Shrouding

Shrouded - 4 Wall

Contact Type

Male Pin

Insulation Resistance

1GOhm

Stack Height Mating

8mm

Contact Plating

Lead, Tin
