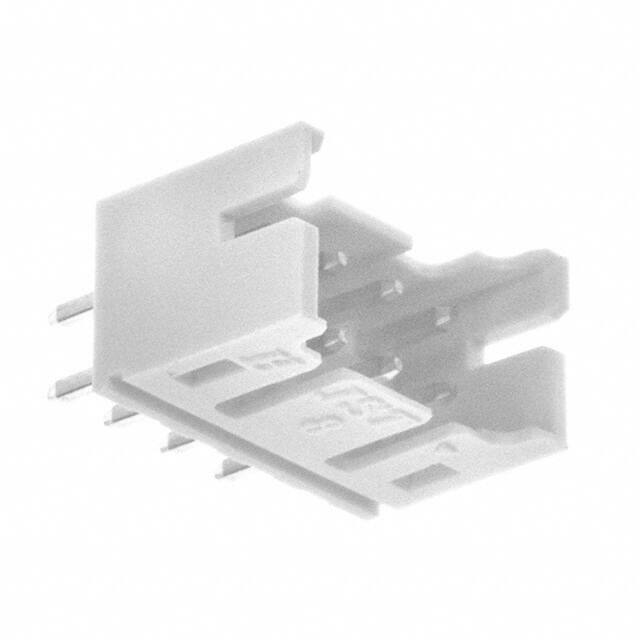

B8B-PHDSS(LF)(SN)

Specifications

Contact Lengthmating

0.114 2.90mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Sıra Sayısı

2

Option

GENERAL PURPOSE

Mixed Contacts

NO

Number Of Positions Loaded

All

Pozisyon Sayısı

8

Connector Type

Header

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Tin

Overall Contact Length

0.291 7.40mm

Kurşunsuz

Lead Free

Mil Conformance

NO

Din Conformance

NO

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

16 Weeks

Montaj

Through Hole

Pitch Mating

0.079 2.00mm

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Filter Feature

NO

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Contact Length Post

0.118 3.00mm

Contact Materials

Copper Alloy

Current Rating Amps

3A

Seri

PHD

Çalışma Sıcaklığı

-25°C~85°C

Insulation Color

Natural

ECCN Kodu

EAR99

Iec Conformance

NO

Yayın Yılı

2008

Montaj Tipi

Through Hole

Nominal Gerilim

250V

JESD-609 Kodu

e3

Fastening Type

Detent Lock

Parça Durumu

Active

Insulation Height

0.256 6.50mm

Ambalaj

Bulk

Additional Feature

TOP ENTRY, LOW PROFILE
