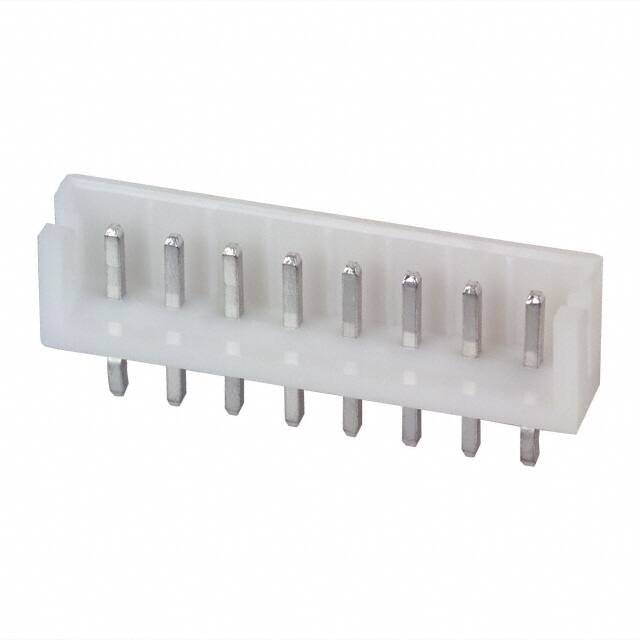

B8B-EH-A(LF)(SN)

Specifications

Contact Lengthmating

0.130 3.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Press-Fit, Solder

Sıra Sayısı

1

Number Of Positions Loaded

All

Pozisyon Sayısı

8

Gender

Male

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Tin

Kurşunsuz

Lead Free

Din Conformance

NO

Fabrika Tedarik Süresi

16 Weeks

Insulation Materials

Polyamide (PA66), Nylon 6/6

Filter Feature

NO

Material Flammability Rating

UL94 V-0

Seri

EH

Çalışma Sıcaklığı

-25°C~85°C

Insulation Color

Natural

ECCN Kodu

EAR99

Housing Color

White

Lead Pitch

2.5mm

Insulation Height

0.236 6.00mm

Additional Feature

POLARIZED, TOP ENTRY, SHROUDED

Housing Material

Nylon

Contact Shape

Square

Ul Flammability Code

94V-0

Option

GENERAL PURPOSE

Mixed Contacts

NO

Akım Değeri

3A

Connector Type

Header

Mil Conformance

NO

Kurşunsuz Kodu

yes

Montaj

Through Hole

Pitch Mating

0.098 2.50mm

Style

Board to Cable/Wire

Contact Length Post

0.126 3.20mm

Contact Materials

Brass

Orientation

Straight

Iec Conformance

NO

Yayın Yılı

2005
