Volume pricing
- 1+ pcs$0.13
- 10+ pcs$0.12
- 100+ pcs$0.11
- 500+ pcs$0.11
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

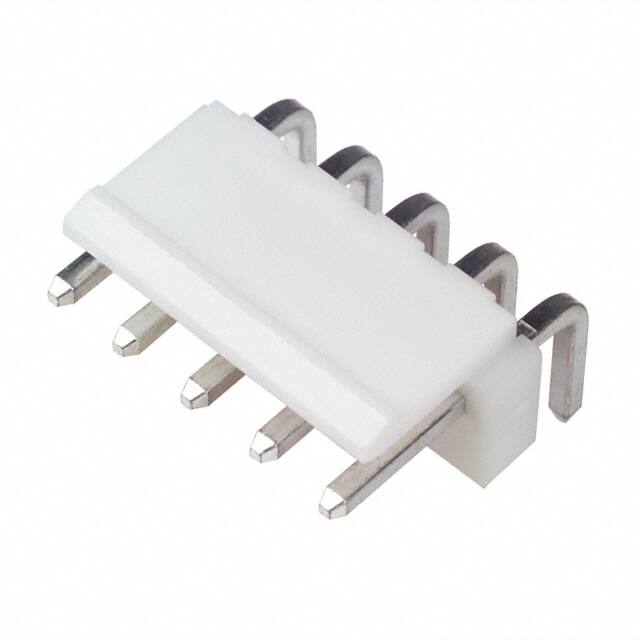

Specifications
- Housing Material
- Nylon
- Kurşunsuz
- Contains Lead
- Orientation
- Horizontal
- Current Rating Amps
- 10A
- ECCN Kodu
- EAR99
- RoHS Durumu
- Non-RoHS Compliant
- Contact Length Post
- 0.142 3.60mm
- Contact Finish Mating
- Tin-Lead
- Parça Durumu
- Obsolete
- Shrouding
- Shrouded - 1 Wall
- Reach Svhc
- No SVHC
- Pitch Mating
- 0.156 3.96mm
- Option
- GENERAL PURPOSE
- Additional Feature
- SIDE ENTRY
- Connector Type
- Header
- Material Flammability Rating
- UL94 V-0
- Yayın Yılı
- 2005
- Ambalaj
- Bulk
- Insulation Color
- Natural
- Lead Pitch
- 3.96mm
- Number Of Positions Loaded
- All
- Contact Materials
- Brass
- JESD-609 Kodu
- e2
- Mil Conformance
- NO
- Terminal
- Solder
- Fastening Type
- Locking Ramp
- Montaj Tipi
- Through Hole, Right Angle
- Filter Feature
- NO
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Çalışma Sıcaklığı
- -25°C~85°C
- Montaj
- Through Hole
- Pozisyon Sayısı
- 5
- Contact Plating
- Tin
- Contact Type
- Male Pin
- Kurşunsuz Kodu
- no
- Nominal Gerilim
- 250V
- Seri
- VH
- Insulation Materials
- Polyamide (PA66), Nylon 6/6
- Sıra Sayısı
- 1
- Din Conformance
- NO
