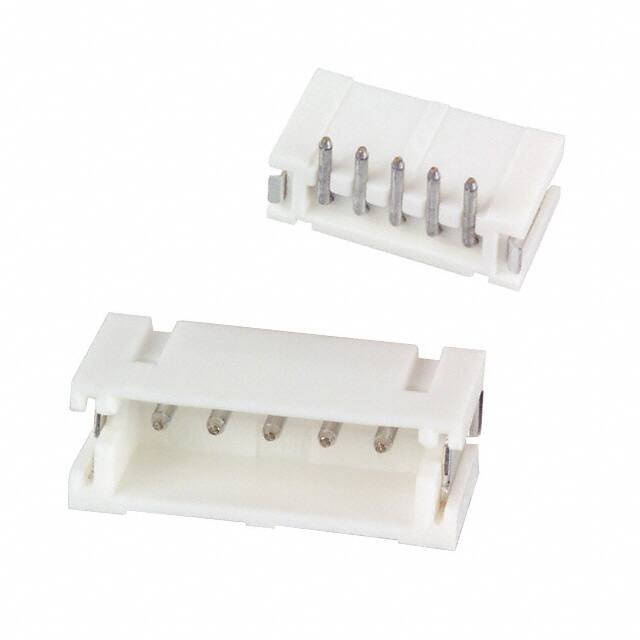

B5B-ZR-SM4-TF(LF)(SN)

Specifications

Insulation Height

0.197 5.00mm

Sıra Sayısı

1

Din Conformance

NO

Seri

ZH

Insulation Materials

Polyamide (PA6T), Nylon 6T, Glass Filled

Kurşunsuz Kodu

yes

Nominal Gerilim

50V

Stack Height Mating

6.4mm

Mixed Contacts

NO

Uzunluk

10.5mm

Contact Shape

Circular

Gender

Male

Ul Flammability Code

94V-0

Iec Conformance

NO

Style

Board to Cable/Wire

Montaj

Surface Mount

Pozisyon Sayısı

5

Yükseklik

5mm

Çalışma Sıcaklığı

-25°C~85°C

Contact Type

Male Pin

Ambalaj

Tape & Reel (TR)

Lead Pitch

1.5mm

Number Of Positions Loaded

All

Contact Materials

Brass

Connector Type

Header

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

16 Weeks

Yayın Yılı

2005

Özellikler

Solder Retention

Additional Feature

TOP ENTRY

Fastening Type

Detent Lock

Montaj Tipi

Surface Mount

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Terminal

Solder

JESD-609 Kodu

e3

Housing Color

Natural

Total Number Of Contacts

5

Genişlik

3.5mm
