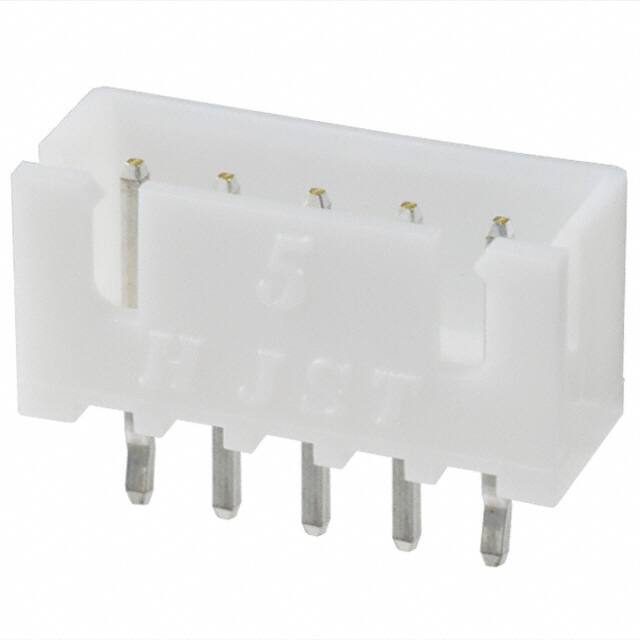

B5B-XH-A(LF)(SN)

Specifications

Çalışma Sıcaklığı

-25°C~85°C

Yükseklik

13.208mm

Depth

5.75mm

Montaj

Through Hole

Pozisyon Sayısı

5

Contact Type

Male Pin

Max Voltage Rating Ac

250V

Max Current Rating

3A

Kurşunsuz Kodu

yes

Seri

XH

Insulation Materials

Polyamide (PA66), Nylon 6/6

Din Conformance

NO

Sıra Sayısı

1

Weight

28.349523g

Insulation Height

0.276 7.00mm

Style

Board to Cable/Wire

Iec Conformance

NO

Ul Flammability Code

94V-0

Gender

Male

Uzunluk

14.9mm

Contact Shape

Square

Stack Height Mating

9.8mm

Mixed Contacts

NO

Insulation Resistance

1GOhm

Housing Material

Polyamide

Kurşunsuz

Lead Free

Voltage Rated Ac

250V

Genişlik

13.208mm

Orientation

Straight

Housing Color

White

Contact Resistance

10mOhm

Akım Değeri

3A

ECCN Kodu

EAR99

RoHS Durumu

RoHS Compliant

Contact Length Post

0.134 3.40mm

Contact Finish Mating

Tin

Parça Durumu

Active

Reach Svhc

No SVHC

Pitch Mating

0.098 2.50mm

Option

GENERAL PURPOSE
