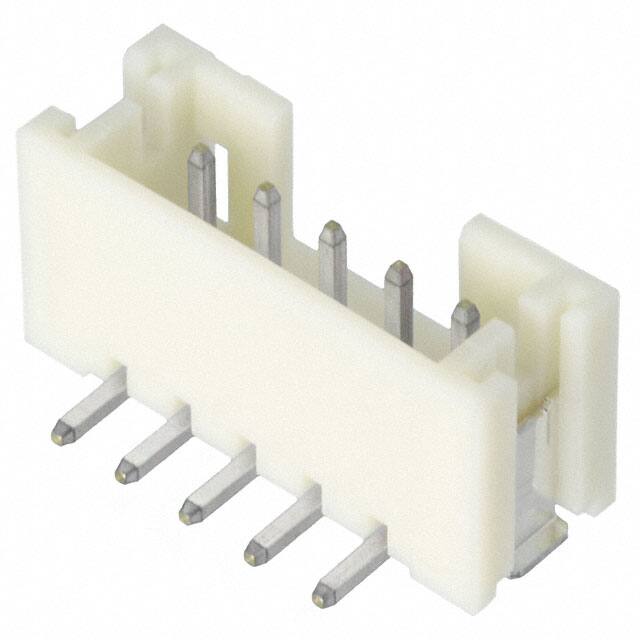

Specifications
- Kurşunsuz
- Lead Free
- Çalışma Sıcaklığı
- -25°C~85°C
- Total Number Of Contacts
- 5
- Pozisyon Sayısı
- 5
- Current Rating Amps
- 2A
- Montaj
- Surface Mount
- Contact Type
- Male Pin
- ECCN Kodu
- EAR99
- Shrouding
- Shrouded - 4 Wall
- Pitch Mating
- 0.079 2.00mm
- Option
- GENERAL PURPOSE
- Parça Durumu
- Active
- Contact Finish Mating
- Tin
- RoHS Durumu
- RoHS Compliant
- Insulation Materials
- Polyamide (PA6T), Nylon 6T
- Terminal Adımı
- 2mm
- Özellikler
- Pick and Place, Solder Retention
- Seri
- PH
- Kurşunsuz Kodu
- yes
- Additional Feature
- TOP ENTRY
- Nominal Gerilim
- 100V
- Number Of Positions Loaded
- All
- Insulation Height
- 0.260 6.60mm
- Contact Materials
- Copper Alloy
- Ambalaj
- Tape & Reel (TR)
- Insulation Color
- Natural
- Fabrika Tedarik Süresi
- 18 Weeks
- Yayın Yılı
- 2010
- Connector Type
- Header
- Sıra Sayısı
- 1
- Din Conformance
- NO
- Material Flammability Rating
- UL94 V-0
- Terminal
- Solder
- Ul Flammability Code
- 94V-0
- Mil Conformance
- NO
- Iec Conformance
- NO
- JESD-609 Kodu
- e3
- Style
- Board to Cable/Wire
- Contact Lengthmating
- 0.130 3.30mm
- Stack Height Mating
- 8.6mm
