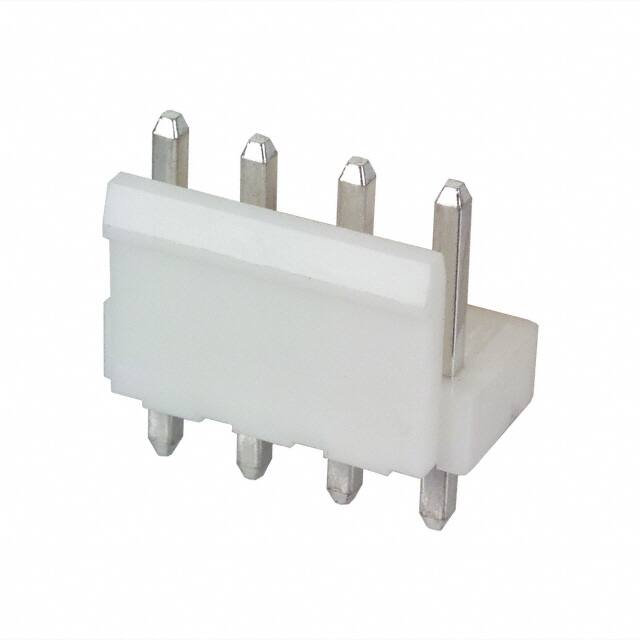

B4P-VH

Specifications

Stack Height Mating

16.5mm

Housing Material

Nylon

Filter Feature

NO

Çalışma Sıcaklığı

-25°C~85°C

Din Conformance

NO

Overall Contact Length

0.575 14.60mm

Current Rating Amps

10A

Montaj Tipi

Through Hole

Contact Materials

Brass

Pozisyon Sayısı

4

Ambalaj

Bulk

Mil Conformance

NO

Mixed Contacts

NO

REACH Uyumluluk Kodu

unknown

Contact Length Post

0.146 3.70mm

Terminal

Solder

Sıra Sayısı

1

Gender

Male

Contact Plating

Lead, Tin

Option

GENERAL PURPOSE

Style

Board to Cable/Wire

Montaj

Through Hole

RoHS Durumu

Non-RoHS Compliant

Material Flammability Rating

UL94 V-0

Additional Feature

TOP ENTRY

Seri

VH

Number Of Positions Loaded

All

Insulation Color

Natural

Contact Lengthmating

0.303 7.70mm

JESD-609 Kodu

e2

Insulation Height

0.370 9.40mm

Insulation Materials

Polyamide (PA66), Nylon 6/6

Pitch Mating

0.156 3.96mm

Kurşunsuz

Contains Lead

Lead Pitch

3.96mm

ECCN Kodu

EAR99

Nominal Gerilim

250V

Shrouding

Shrouded - 1 Wall

Fastening Type

Locking Ramp

Iec Conformance

NO
