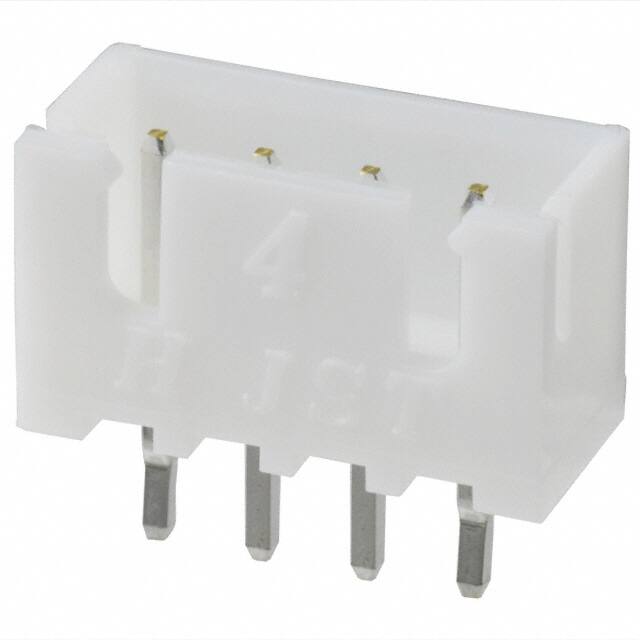

B4B-XH-A(LF)(SN)

Specifications

Insulation Materials

Polyamide (PA66), Nylon 6/6

JESD-609 Kodu

e3

Insulation Height

0.276 7.00mm

Pitch Mating

0.098 2.50mm

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

16 Weeks

Voltage Rated Ac

250V

Seri

XH

Number Of Positions Loaded

All

Housing Color

White

Kurşunsuz Kodu

yes

Insulation Color

Natural

Shrouding

Shrouded - 4 Wall

Genişlik

12.7mm

Fastening Type

Detent Lock

ECCN Kodu

EAR99

Lead Pitch

2.5mm

Insulation Resistance

1GOhm

Parça Durumu

Active

Contact Finish Mating

Tin

Orientation

Straight

Contact Shape

Square

Iec Conformance

NO

Max Voltage Rating Ac

250V

Max Voltage Rating Dc

250V

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

No SVHC

Connector Type

Header

Uzunluk

12.4mm

Yayın Yılı

2008

Contact Resistance

20mOhm

Çalışma Sıcaklığı

-25°C~85°C

Din Conformance

NO

Housing Material

Polyamide

Stack Height Mating

9.8mm

Filter Feature

NO

Akım Değeri

3A

Mixed Contacts

NO

Mil Conformance

NO
