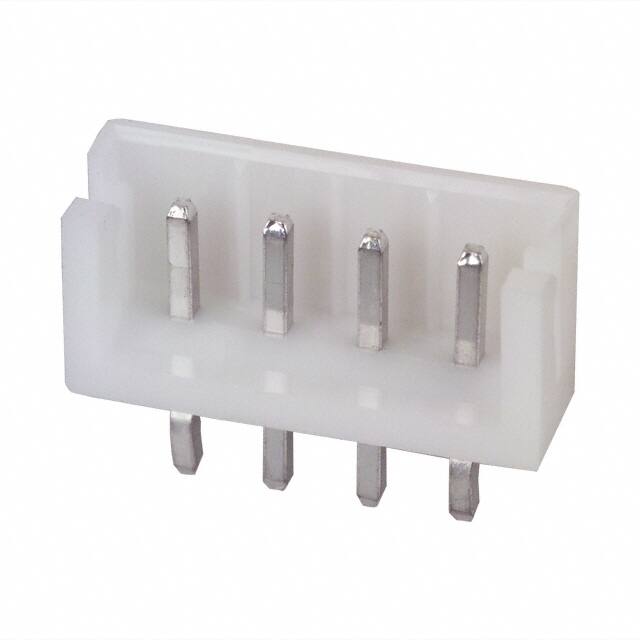

B4B-EH-A(LF)(SN)

Specifications

Contact Type

Male Pin

Reach Svhc

Unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Max Voltage Rating Ac

250V

Contact Shape

Square

Parça Durumu

Active

Contact Finish Mating

Tin

Orientation

Straight

Yayın Yılı

2008

Contact Resistance

20mOhm

Connector Type

Header

Uzunluk

12.5mm

Housing Color

White

Kurşunsuz Kodu

yes

Insulation Color

Natural

Seri

EH

Number Of Positions Loaded

All

Pitch Mating

0.098 2.50mm

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

18 Weeks

Insulation Materials

Polyamide (PA66), Nylon 6/6

JESD-609 Kodu

e3

Contact Lengthmating

0.130 3.30mm

Insulation Height

0.236 6.00mm

ECCN Kodu

EAR99

Lead Pitch

2.5mm

Fastening Type

Friction Lock

Shrouding

Shrouded - 3 Wall

Contact Length Post

0.126 3.20mm

Gender

Male

Sıra Sayısı

1

Terminal

Press-Fit, Solder

Style

Board to Cable/Wire

Montaj

Through Hole

Option

GENERAL PURPOSE

Max Current Rating

3A

Yükseklik

6mm

Additional Feature

POLARIZED, TOP ENTRY, SHROUDED

Material Flammability Rating

UL94 V-0
