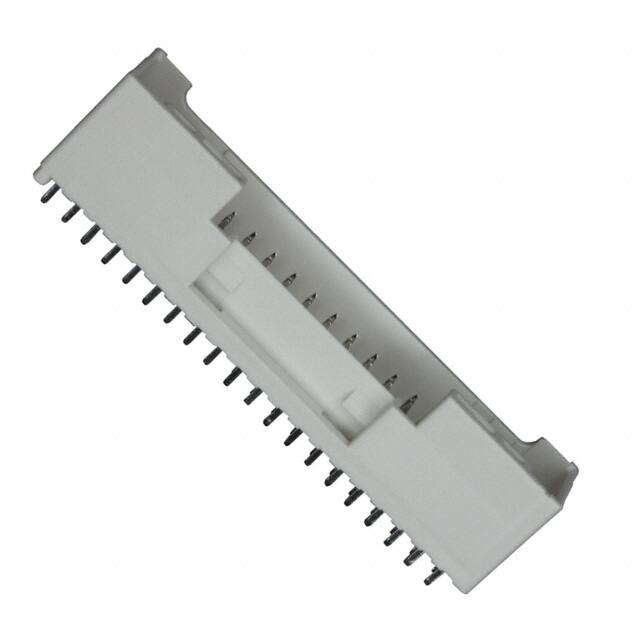

B40B-PUDSS-1(LF)(SN)

Specifications

Connector Type

Header

Montaj Tipi

Through Hole

Insulation Color

Natural

Filter Feature

NO

Gender

Male

Style

Board to Cable/Wire

Özellikler

Board Guide

Insulation Height

0.378 9.60mm

Çalışma Sıcaklığı

-25°C~85°C

Contact Type

Male Pin

Number Of Positions Loaded

All

Nominal Gerilim

250V

Pitch Mating

0.079 2.00mm

Ul Flammability Code

94V-0

Stack Height Mating

11mm

Option

GENERAL PURPOSE

Pozisyon Sayısı

40

Kurşunsuz Kodu

yes

Sıra Sayısı

2

Parça Durumu

Active

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Contact Shape

Square

Fabrika Tedarik Süresi

16 Weeks

Terminal

Solder

Current Rating Amps

3A

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Additional Feature

POLARIZED, TOP ENTRY, SHROUDED

Din Conformance

NO

Mil Conformance

NO

Iec Conformance

NO

Shrouding

Shrouded - 4 Wall

Ambalaj

Bulk

Contact Length Post

0.122 3.10mm

RoHS Durumu

RoHS Compliant

Fastening Type

Latch Holder

Reach Svhc

Unknown

Mixed Contacts

NO

Montaj

Through Hole

Contact Finish Mating

Tin
