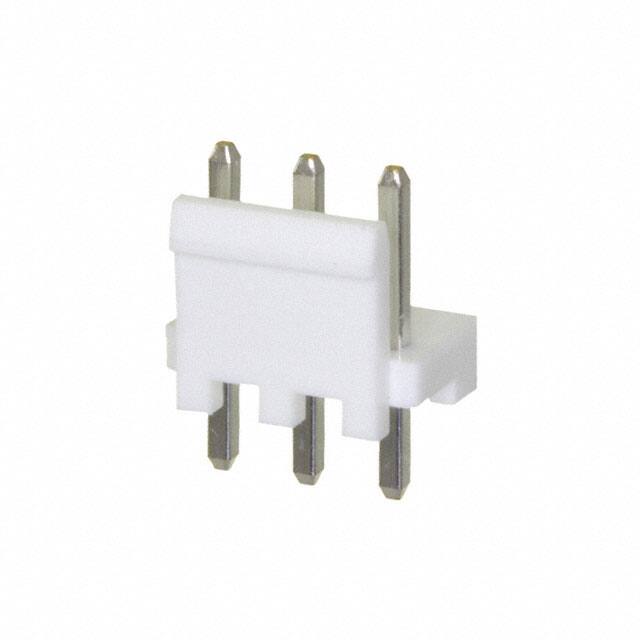

Specifications
- Montaj Tipi
- Through Hole
- Material Flammability Rating
- UL94 V-0
- Ul Flammability Code
- 94V-0
- Overall Contact Length
- 0.575 14.60mm
- Mil Conformance
- NO
- Additional Feature
- TOP ENTRY
- Contact Lengthmating
- 0.303 7.70mm
- Insulation Materials
- Polybutylene Terephthalate (PBT), Glass Filled
- Din Conformance
- NO
- Iec Conformance
- NO
- Contact Finish Mating
- Tin
- Style
- Board to Cable/Wire
- Seri
- VH
- Nominal Gerilim
- 250V
- Terminal
- Solder
- Yayın Yılı
- 2008
- Contact Length Post
- 0.146 3.70mm
- Number Of Positions Loaded
- All
- Option
- GENERAL PURPOSE
- Insulation Color
- Natural
- RoHS Durumu
- RoHS Compliant
- Kurşunsuz
- Lead Free
- Pozisyon Sayısı
- 3
- Kurşunsuz Kodu
- yes
- Çalışma Sıcaklığı
- -25°C~85°C
- Contact Type
- Male Pin
- Sıra Sayısı
- 1
- Fastening Type
- Locking Ramp
- Ambalaj
- Bulk
- Filter Feature
- NO
- Shrouding
- Shrouded - 1 Wall
- Mixed Contacts
- NO
- Insulation Height
- 0.370 9.40mm
- Current Rating Amps
- 10A
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Fabrika Tedarik Süresi
- 16 Weeks
- Connector Type
- Header
- Parça Durumu
- Active
- Contact Shape
- Square
- Contact Materials
- Brass
