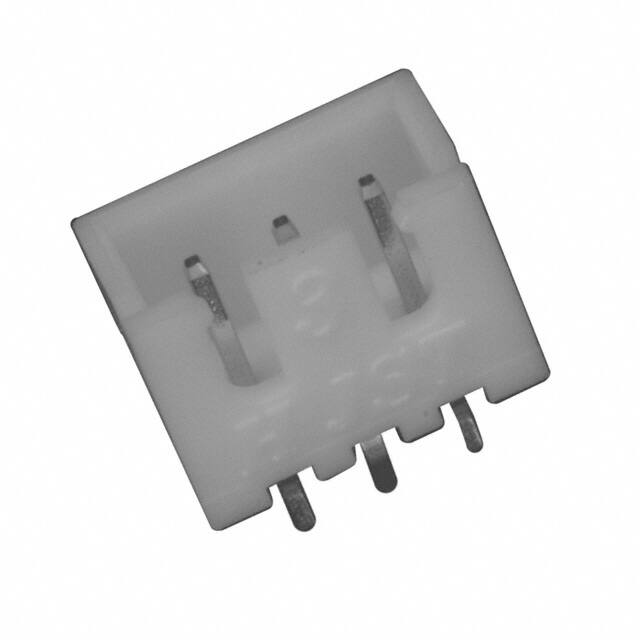

B3B-XH-AM(LF)(SN)

Specifications

JESD-609 Kodu

e2

Terminal

Press-Fit, Solder

Contact Length Post

0.134 3.40mm

Depth

5.75mm

Option

GENERAL PURPOSE

Insulation Color

Natural

Contact Resistance

20mOhm

Material Flammability Rating

UL94 V-0

Mil Conformance

NO

Ul Flammability Code

94V-0

ECCN Kodu

EAR99

Insulation Materials

Polyamide (PA66), Nylon 6/6

Din Conformance

NO

Insulation Height

0.276 7.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Renk

White

Parça Durumu

Active

Contact Plating

Copper, Lead, Tin

Pitch Mating

0.098 2.50mm

Contact Materials

Brass

RoHS Durumu

RoHS Compliant

Uzunluk

9.9mm

Kurşunsuz

Lead Free

Montaj

Through Hole

Sıra Sayısı

1

Contact Type

Male Pin

Contact Finish Mating

Tin

Style

Board to Cable/Wire

Özellikler

Board Guide

Nominal Gerilim

250V

Seri

XH

Terminal Adımı

2.5mm

Yayın Yılı

2010

Number Of Positions Loaded

All

Montaj Tipi

Through Hole

Orientation

Straight

Additional Feature

SHROUDED, TOP ENTRY

Iec Conformance

NO

Fastening Type

Detent Lock

Housing Material

Polyamide
