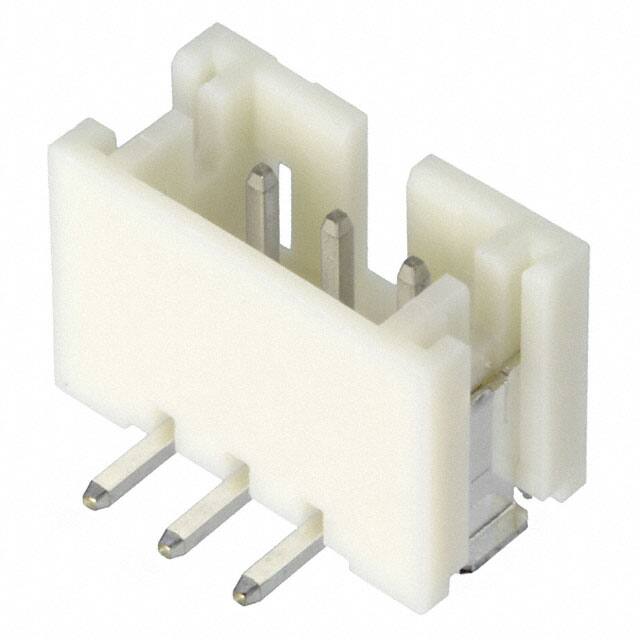

B3B-PH-SM4-TBT(LF)(SN)

Specifications

Yayın Yılı

2008

Terminal Adımı

2mm

Number Of Positions Loaded

All

Contact Finish Mating

Tin

Style

Board to Cable/Wire

Nominal Gerilim

100V

Seri

PH

Özellikler

Pick and Place, Solder Retention

Iec Conformance

NO

Montaj Tipi

Surface Mount

Orientation

Straight

Additional Feature

LOW PROFILE

Max Current Rating

2A

Fabrika Tedarik Süresi

16 Weeks

Connector Type

Header

Max Voltage Rating Ac

100V

Contact Shape

Square

Fastening Type

Detent Lock

Housing Material

Polyamide

Ambalaj

Tape & Reel (TR)

Filter Feature

NO

Shrouding

Shrouded - 4 Wall

Mixed Contacts

NO

Stack Height Mating

8.6mm

Çalışma Sıcaklığı

-25°C~85°C

Pozisyon Sayısı

3

Housing Color

Beige

Depth

5mm

Option

GENERAL PURPOSE

Insulation Color

Natural

JESD-609 Kodu

e3

Terminal

Solder

Insulation Materials

Polyamide (PA6T), Nylon 6T

Din Conformance

NO

Contact Lengthmating

0.130 3.30mm

Contact Resistance

20mOhm

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)
