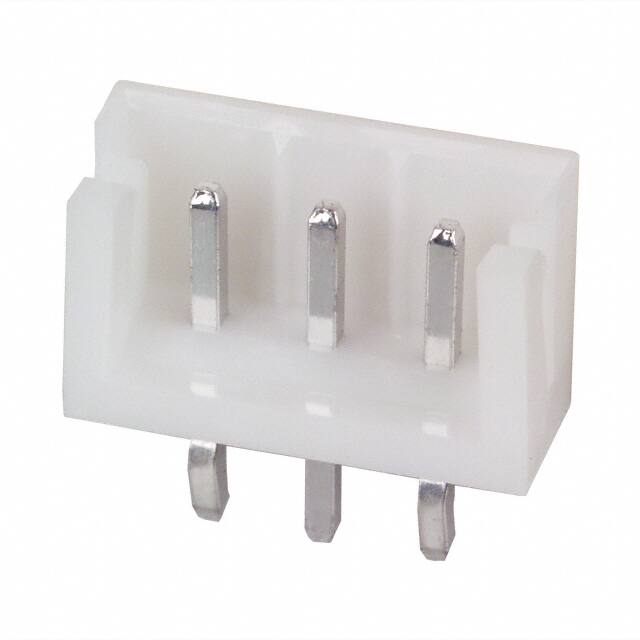

B3B-EH-A

Specifications

Pozisyon Sayısı

3

Kurşunsuz Kodu

no

Stack Height Mating

8.1mm

Çalışma Sıcaklığı

-25°C~85°C

Filter Feature

NO

Ambalaj

Bulk

Housing Material

Nylon

Fastening Type

Friction Lock

Mixed Contacts

NO

Shrouding

Shrouded - 3 Wall

Connector Type

Header

Contact Shape

Square

Gender

Male

Montaj Tipi

Through Hole

Additional Feature

POLARIZED, TOP ENTRY, SHROUDED

Iec Conformance

NO

Style

Board to Cable/Wire

Contact Finish Mating

Tin-Lead

Seri

EH

Nominal Gerilim

250V

Number Of Positions Loaded

All

Yayın Yılı

2002

Kurşunsuz

Contains Lead

RoHS Durumu

Non-RoHS Compliant

REACH Uyumluluk Kodu

unknown

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Type

Male Pin

Sıra Sayısı

1

Montaj

Through Hole

Insulation Height

0.236 6.00mm

Current Rating Amps

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Brass

Pitch Mating

0.098 2.50mm

Contact Plating

Lead, Tin

Parça Durumu

Obsolete

Ul Flammability Code

94V-0

Mil Conformance

NO

Material Flammability Rating

UL94 V-0

Contact Lengthmating

0.130 3.30mm
