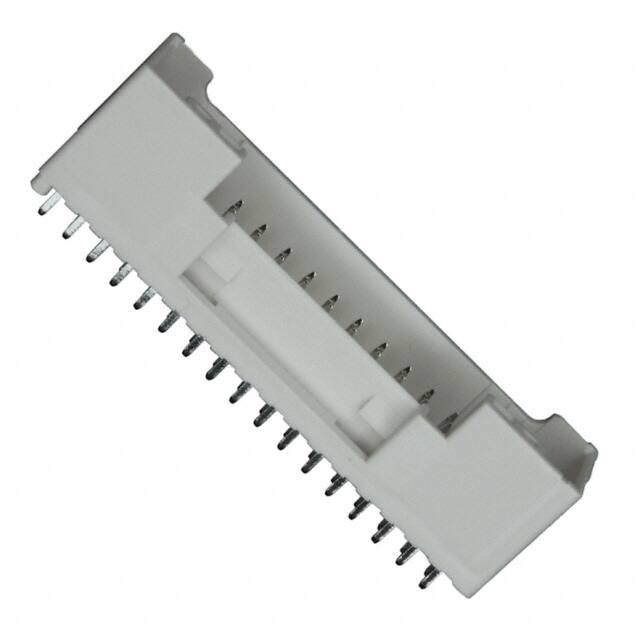

B34B-PUDSS-1(LF)(SN)

Specifications

Number Of Positions Loaded

All

Kurşunsuz Kodu

yes

Montaj Tipi

Through Hole

Contact Finish Mating

Tin

Fastening Type

Latch Holder

Row Spacing Mating

0.079 (2.00mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-25°C~85°C

Pozisyon Sayısı

34

Pitch Mating

0.079 2.00mm

Additional Feature

POLARIZED, TOP ENTRY, SHROUDED

Shrouding

Shrouded - 4 Wall

Filter Feature

NO

Stack Height Mating

11mm

Ambalaj

Bulk

Sıra Sayısı

2

Insulation Height

0.378 9.60mm

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Style

Board to Cable/Wire

Ul Flammability Code

94V-0

Contact Shape

Square

Seri

PUD

Connector Type

Header

Contact Type

Male Pin

Option

GENERAL PURPOSE

Nominal Gerilim

250V

Kurşunsuz

Lead Free

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Mixed Contacts

NO

Terminal

Solder

Current Rating Amps

3A

Contact Length Post

0.122 3.10mm

Contact Materials

Copper Alloy

RoHS Durumu

RoHS Compliant

Özellikler

Board Guide

Mil Conformance

NO

Parça Durumu

Active

Yayın Yılı

2011
