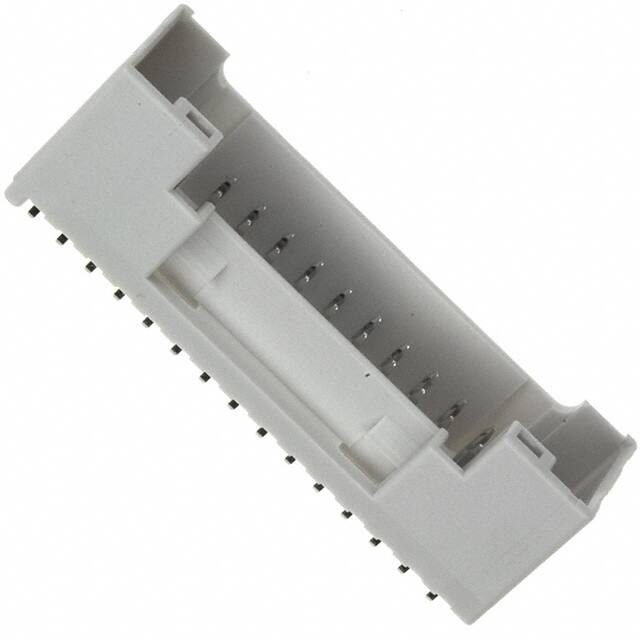

B30B-PUDSS-1(LF)(SN)

Specifications

Fastening Type

Latch Holder

JESD-609 Kodu

e3

Contact Type

Male Pin

Insulation Color

Natural

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Iec Conformance

NO

Çalışma Sıcaklığı

-25°C~85°C

Stack Height Mating

11mm

Terminal

Solder

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Montaj

Through Hole

Din Conformance

NO

Filter Feature

NO

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

30

Contact Shape

Square

Mixed Contacts

NO

Option

GENERAL PURPOSE

Özellikler

Board Guide

Yayın Yılı

2011

Kurşunsuz Kodu

yes

Connector Type

Header

Style

Board to Cable/Wire

Additional Feature

POLARIZED, TOP ENTRY, SHROUDED

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Sıra Sayısı

2

Insulation Height

0.378 9.60mm

Parça Durumu

Active

Contact Materials

Copper Alloy

Nominal Gerilim

250V

Contact Finish Mating

Tin

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Seri

PUD

Fabrika Tedarik Süresi

18 Weeks

Gender

Male

Montaj Tipi

Through Hole

Ul Flammability Code

94V-0
