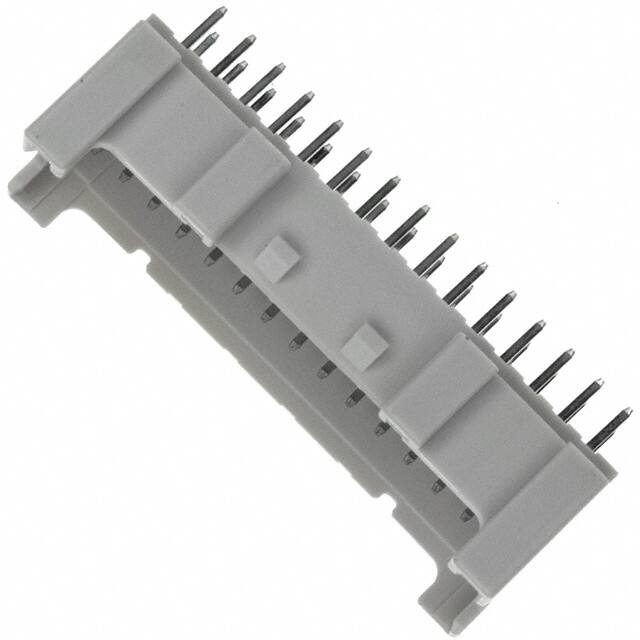

B30B-PNDZS-1 (T) (LF)(SN)

Specifications

Material Flammability Rating

UL94 V-0

Filter Feature

NO

Din Conformance

NO

Pozisyon Sayısı

30

Terminal

Solder

RoHS Durumu

RoHS Compliant

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-25°C~85°C

Iec Conformance

NO

Stack Height Mating

12.9mm

Fastening Type

Locking Ramp

JESD-609 Kodu

e3

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Ivory

Pitch Mating

0.079 2.00mm

Row Spacing Mating

0.197 (5.00mm)

Ambalaj

Tray

Current Rating Amps

3A

Fabrika Tedarik Süresi

16 Weeks

Montaj Tipi

Through Hole

Ul Flammability Code

94V-0

Contact Length Post

0.126 3.20mm

Style

Board to Cable/Wire

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Contact Materials

Copper Alloy

Parça Durumu

Active

Insulation Height

0.390 9.91mm

Sıra Sayısı

2

Nominal Gerilim

250V

Contact Finish Mating

Tin

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Seri

PND

Mixed Contacts

NO

Contact Shape

Square

Option

GENERAL PURPOSE

Yayın Yılı

2015

Özellikler

Board Guide

Connector Type

Header
