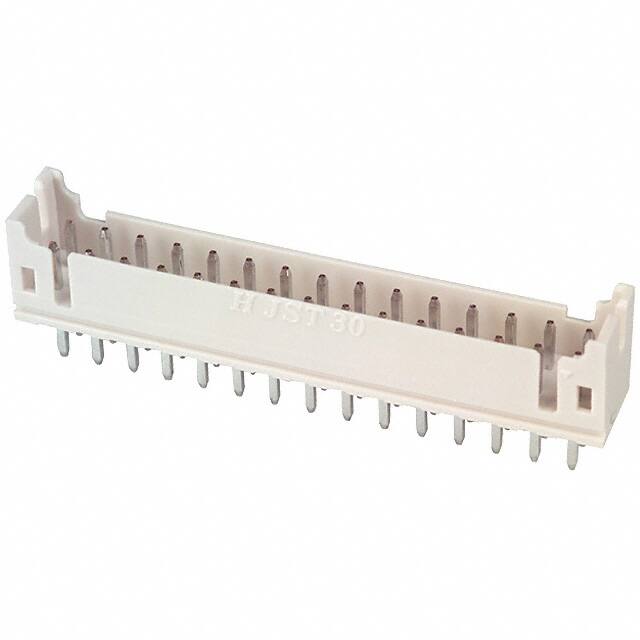

B30B-PHDSS(LF)(SN)

Specifications

Insulation Height

0.256 6.50mm

Mil Conformance

NO

Nominal Gerilim

250V

Shrouding

Shrouded - 4 Wall

Style

Board to Cable/Wire

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Additional Feature

TOP ENTRY, LOW PROFILE

Yayın Yılı

2011

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Option

GENERAL PURPOSE

Ambalaj

Bulk

Row Spacing Mating

0.079 (2.00mm)

Montaj Tipi

Through Hole

Contact Length Post

0.118 3.00mm

Çalışma Sıcaklığı

-25°C~85°C

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Detent Lock

Pozisyon Sayısı

30

Material Flammability Rating

UL94 V-0

Contact Lengthmating

0.114 2.90mm

HTS Kodu

8536.69.40.40

Montaj

Through Hole

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Contact Materials

Copper Alloy

Parça Durumu

Active

Sıra Sayısı

2

Housing Color

Natural

Seri

PHD

Contact Finish Mating

Tin

Connector Type

Header

Contact Shape

Square

ECCN Kodu

EAR99

Housing Material

Nylon

Current Rating Amps

3A

Pitch Mating

0.079 2.00mm

Gender

Male

Ul Flammability Code

94V-0
