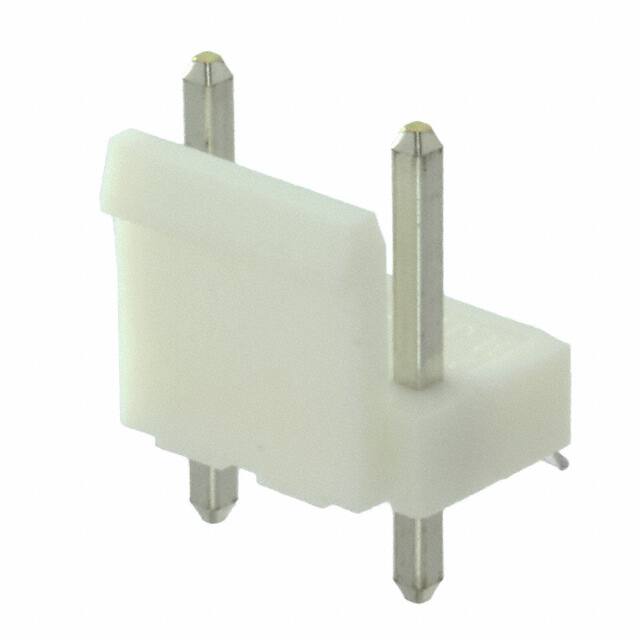

B2P3-VH(LF)(SN)

Specifications

Connector Type

Header

Nominal Gerilim

250V

Mil Conformance

NO

Stack Height Mating

17.5mm

Parça Durumu

Active

Ambalaj

Bulk

Din Conformance

NO

Insulation Materials

Polyamide (PA66), Nylon 6/6

Pozisyon Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-25°C~85°C

Option

GENERAL PURPOSE

Additional Feature

TOP ENTRY

Contact Shape

Square

Shrouding

Shrouded - 1 Wall

Insulation Color

Natural

Montaj Tipi

Through Hole

Overall Contact Length

0.575 14.60mm

Contact Type

Male Pin

Sıra Sayısı

1

Shell Material

POLYAMIDE66

Fabrika Tedarik Süresi

18 Weeks

Number Of Positions Loaded

All

Contact Materials

Brass

Insulation Height

0.370 9.40mm

JESD-609 Kodu

e3

Seri

VA

Yayın Yılı

1997

Mixed Contacts

NO

Terminal

Solder

Ul Flammability Code

94V-0

Empty Shell

NO

Kurşunsuz Kodu

yes

Filter Feature

NO

Contact Lengthmating

0.303 7.70mm

Current Rating Amps

7A

RoHS Durumu

RoHS Compliant

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Fastening Type

Locking Ramp
