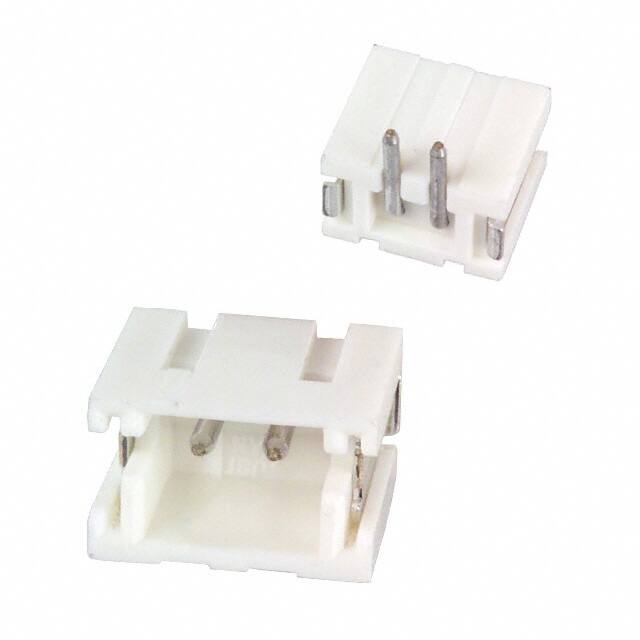

B2B-ZR-SM4-TFT(LF)(SN)

Specifications

Mil Conformance

NO

Orientation

Straight

Depth

3.7mm

Nominal Gerilim

50V

Pozisyon Sayısı

2

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

2

Max Current Rating

1A

Option

GENERAL PURPOSE

Çalışma Sıcaklığı

-25°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Insulation Color

Natural

Shrouding

Shrouded - 4 Wall

Insulation Height

0.197 5.00mm

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

16 Weeks

Kurşunsuz

Lead Free

Max Voltage Rating Ac

50V

RoHS Durumu

RoHS Compliant

Uzunluk

6mm

Filter Feature

NO

Pitch Mating

0.059 1.50mm

Iec Conformance

NO

Material Flammability Rating

UL94 V-0

Connector Type

Header

Insulation Materials

Polyamide (PA6T), Nylon 6T, Glass Filled

Din Conformance

NO

Housing Material

Polyamide

Contact Resistance

30mOhm

Parça Durumu

Active

Stack Height Mating

6.4mm

Özellikler

Pick and Place, Solder Retention

Contact Type

Male Pin

Montaj Tipi

Surface Mount

Additional Feature

TOP ENTRY

Contact Shape

Circular

JESD-609 Kodu

e3

Contact Materials

Brass

Ul Flammability Code

94V-0
