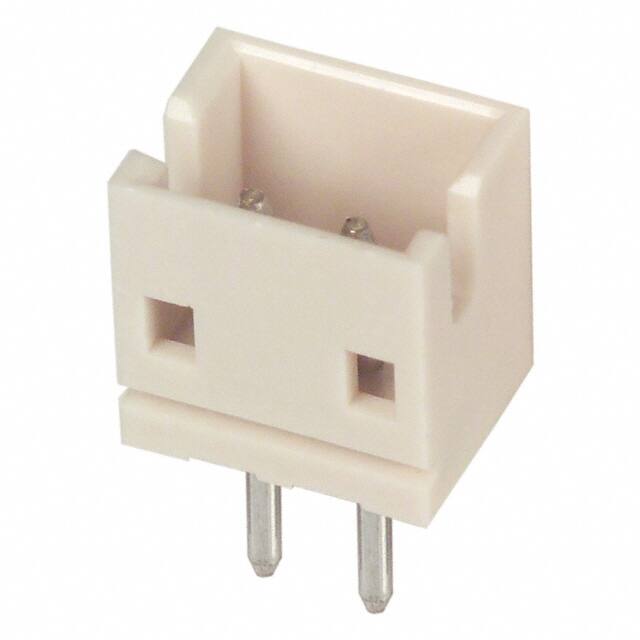

B2B-ZR(LF)(SN)

Specifications

Fastening Type

Detent Lock

Contact Finish Mating

Tin

Contact Lengthmating

0.094 2.40mm

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Housing Color

Beige

Mixed Contacts

NO

Terminal

Press-Fit, Solder

Yayın Yılı

2004

Seri

ZH

Ul Flammability Code

94V-0

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Panel Thickness

3.5mm

Contact Materials

Brass

Montaj Tipi

Through Hole

Weight

28.349523g

Additional Feature

TOP ENTRY

Contact Shape

Circular

Gender

Male

HTS Kodu

8536.69.40.40

Contact Type

Male Pin

Overall Contact Length

0.256 6.50mm

Parça Durumu

Active

Contact Resistance

30mOhm

Stack Height Mating

5.6mm

Flammability Rating

UL94 V-0

Insulation Resistance

500MOhm

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Din Conformance

NO

Housing Material

Polyamide

Connector Type

Header

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Contact Length Post

0.106 2.69mm

Pitch Mating

0.059 1.50mm

Iec Conformance

NO

Yükseklik

4.064mm

Filter Feature

NO

Voltage Rated Ac

50V
