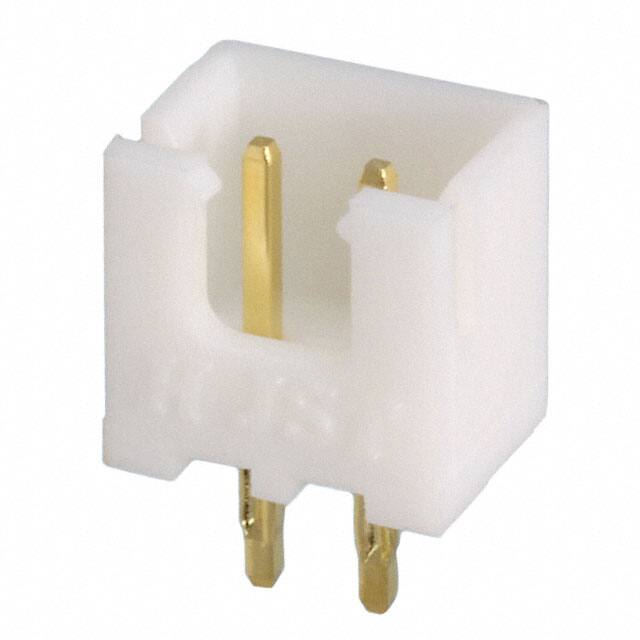

B2B-XH-A-GU

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

16.0μin 0.41μm

Çalışma Sıcaklığı

-25°C~85°C

Option

GENERAL PURPOSE

Montaj Tipi

Through Hole

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Additional Feature

TOP ENTRY

Insulation Color

Natural

Contact Type

Male Pin

Sıra Sayısı

1

Nominal Gerilim

250V

Connector Type

Header

Mil Conformance

NO

Parça Durumu

Active

Stack Height Mating

9.8mm

Din Conformance

NO

Insulation Materials

Polyamide (PA66), Nylon 6/6

Pozisyon Sayısı

2

Ambalaj

Bulk

Kurşunsuz Kodu

no

Filter Feature

NO

RoHS Durumu

RoHS Compliant

Style

Board to Cable/Wire

Current Rating Amps

3A

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Contact Length Post

0.134 3.40mm

Pitch Mating

0.098 2.50mm

Iec Conformance

NO

Contact Finish Mating

Gold

Fastening Type

Detent Lock

Fabrika Tedarik Süresi

16 Weeks

Insulation Height

0.276 7.00mm

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Contact Materials

Brass

Terminal

Press-Fit, Solder

Mixed Contacts

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE
