Volume pricing
- 1+ pcs$0.51
- 10+ pcs$0.49
- 100+ pcs$0.46
- 500+ pcs$0.43
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

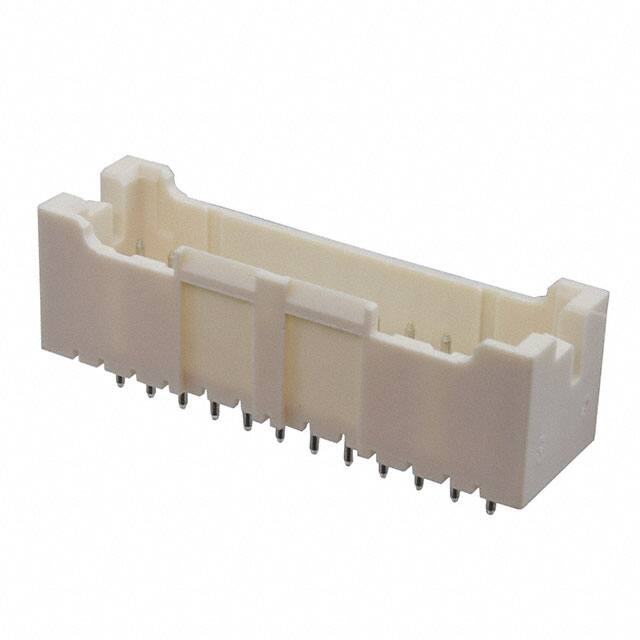

Specifications
- Style
- Board to Cable/Wire
- JESD-609 Kodu
- e3
- Iec Conformance
- NO
- Ul Flammability Code
- 94V-0
- Terminal
- Solder
- Row Spacing Mating
- 0.098 (2.50mm)
- Mil Conformance
- NO
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Shape
- Circular
- Filter Feature
- NO
- Montaj Tipi
- Through Hole
- Fastening Type
- Locking Ramp
- Mixed Contacts
- NO
- Stack Height Mating
- 13.8mm
- Nominal Gerilim
- 250V
- Kurşunsuz Kodu
- yes
- Additional Feature
- TOP ENTRY, SHROUDED, POLARIZED
- Insulation Materials
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Seri
- XAD
- Yayın Yılı
- 2010
- Fabrika Tedarik Süresi
- 17 Weeks
- Material Flammability Rating
- UL94 V-0
- Din Conformance
- NO
- Connector Type
- Header
- Sıra Sayısı
- 2
- Contact Materials
- Copper Alloy
- Insulation Height
- 0.398 10.11mm
- Number Of Positions Loaded
- All
- Ambalaj
- Bulk
- Insulation Color
- Natural
- Contact Type
- Male Pin
- Contact Finish Mating
- Tin
- Contact Length Post
- 0.138 3.50mm
- RoHS Durumu
- Non-RoHS Compliant
- Pitch Mating
- 0.098 2.50mm
- Option
- GENERAL PURPOSE
- Shrouding
- Shrouded - 4 Wall
- Parça Durumu
- Active
- Kurşunsuz
- Lead Free
- Çalışma Sıcaklığı
- -25°C~85°C
