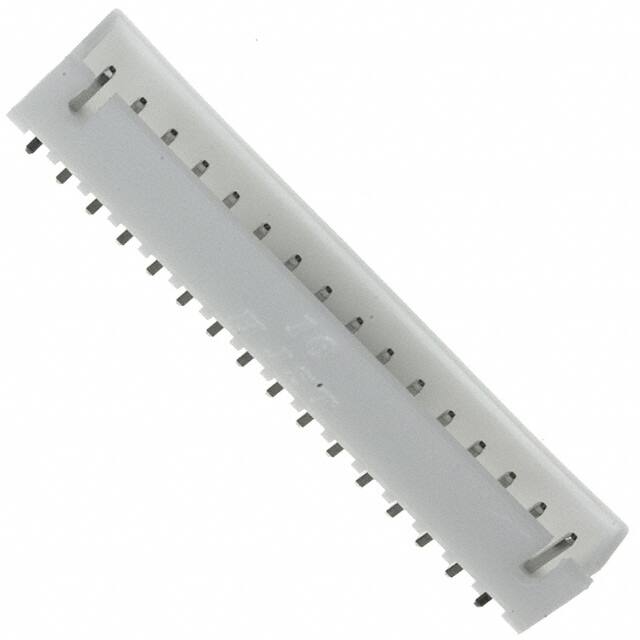

B16B-XH-A(LF)(SN)

Specifications

Kurşunsuz Kodu

yes

Uzunluk

42.4mm

Depth

5.75mm

Iec Conformance

NO

Max Current Rating

3A

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Contact Finish Mating

Tin

Number Of Positions Loaded

All

Insulation Height

0.276 7.00mm

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-25°C~85°C

Montaj

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

No SVHC

Pitch Mating

0.098 2.50mm

Yayın Yılı

2010

Contact Type

Male Pin

Stack Height Mating

9.8mm

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Terminal Adımı

2.5mm

Housing Material

Polyamide

Contact Materials

Brass

Housing Color

White

Contact Resistance

20mOhm

Mixed Contacts

NO

Seri

XH

Sıra Sayısı

1

Orientation

Straight

Nominal Gerilim

250V

Ambalaj

Bulk

Pozisyon Sayısı

16

Kurşunsuz

Lead Free

Contact Shape

Square

Max Voltage Rating Ac

250V

Gender

Male

Insulation Materials

Polyamide (PA66), Nylon 6/6
