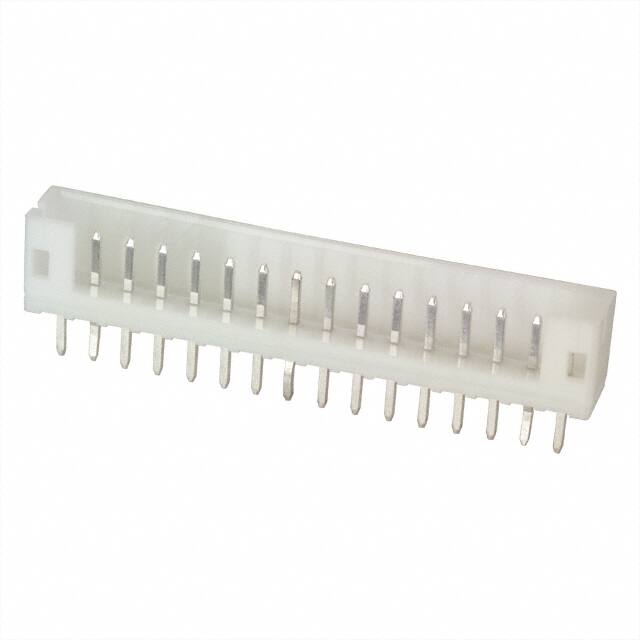

B16B-PH-K-S(LF)(SN)

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Through Hole

Contact Type

Male Pin

Yayın Yılı

2005

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Stack Height Mating

8mm

Contact Materials

Brass

Housing Material

Nylon

Ul Flammability Code

94V-0

Akım Değeri

2A

Housing Color

Natural

Lead Pitch

2mm

Kurşunsuz Kodu

yes

Insulation Resistance

1GOhm

ECCN Kodu

EAR99

Iec Conformance

NO

Contact Finish Mating

Tin

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Number Of Positions Loaded

All

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Insulation Height

0.236 6.00mm

Çalışma Sıcaklığı

-25°C~85°C

Montaj Tipi

Through Hole

Mil Conformance

NO

Fastening Type

Detent Lock

Fabrika Tedarik Süresi

16 Weeks

Additional Feature

TOP ENTRY

Option

GENERAL PURPOSE

RoHS Durumu

RoHS Compliant

Contact Lengthmating

0.130 3.30mm

Material

Polyamide

Terminal

Press-Fit, Solder

Overall Contact Length

0.333 8.45mm

Din Conformance

NO

Contact Length Post

0.134 3.40mm

Filter Feature

NO

Mixed Contacts

NO
