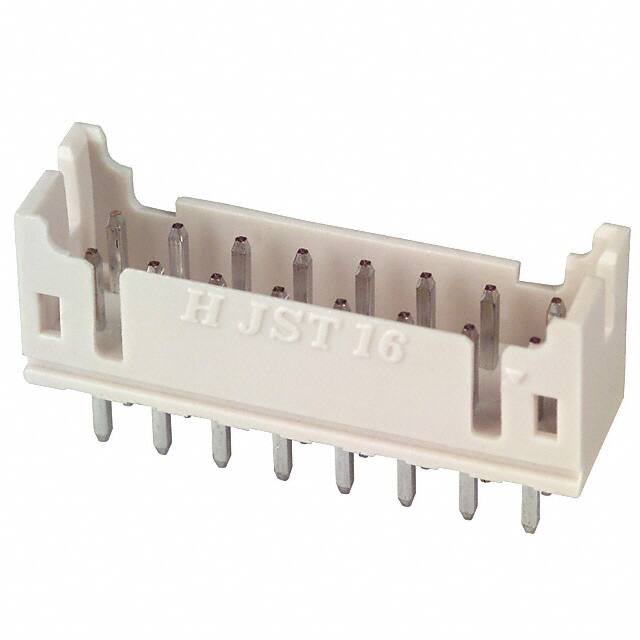

B16B-PHDSS(LF)(SN)

Specifications

Iec Conformance

NO

Max Current Rating

3A

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Tin

Kurşunsuz Kodu

yes

Uzunluk

17.9mm

ECCN Kodu

EAR99

Depth

5mm

Insulation Height

0.256 6.50mm

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Çalışma Sıcaklığı

-25°C~85°C

Montaj Tipi

Through Hole

Number Of Positions Loaded

All

Pitch Mating

0.079 2.00mm

Yayın Yılı

2005

Yükseklik

9.5mm

Contact Type

Male Pin

JESD-609 Kodu

e3

Stack Height Mating

8.8mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Through Hole

Housing Color

Beige

Lead Pitch

2mm

Ul Flammability Code

94V-0

Housing Material

Polyamide

Contact Materials

Copper Alloy

Akım Değeri

3A

Orientation

Straight

Ambalaj

Bulk

Pozisyon Sayısı

16

Mixed Contacts

NO

Contact Resistance

20mOhm

Seri

PHD

Sıra Sayısı

2

Gender

Male

Max Voltage Rating Ac

250V

Connector Type

Header

HTS Kodu

8536.69.40.40
