Volume pricing
- 1+ pcs$0.10
- 10+ pcs$0.10
- 100+ pcs$0.09
- 500+ pcs$0.09
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

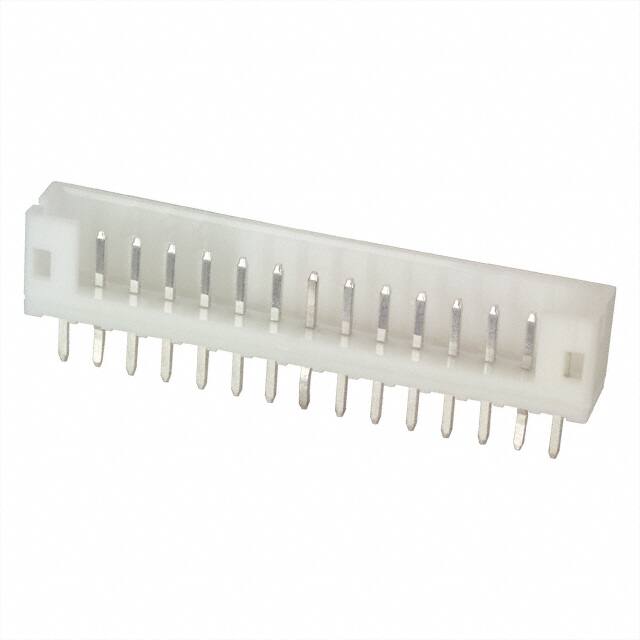

Specifications
- Nominal Gerilim
- 100V
- Orientation
- Straight
- Pozisyon Sayısı
- 15
- Ambalaj
- Bulk
- Mixed Contacts
- NO
- Contact Resistance
- 20mOhm
- Sıra Sayısı
- 1
- Seri
- PH
- Gender
- Male
- Max Voltage Rating Ac
- 100V
- Connector Type
- Header
- HTS Kodu
- 8536.69.40.40
- Insulation Materials
- Polyamide (PA66), Nylon 6/6
- Contact Shape
- Square
- Kurşunsuz
- Lead Free
- Fastening Type
- Detent Lock
- Fabrika Tedarik Süresi
- 16 Weeks
- Insulation Color
- Natural
- Additional Feature
- TOP ENTRY
- Option
- GENERAL PURPOSE
- Mil Conformance
- NO
- Contact Length Post
- 0.134 3.40mm
- Filter Feature
- NO
- RoHS Durumu
- RoHS Compliant
- Contact Lengthmating
- 0.130 3.30mm
- Terminal
- Press-Fit, Solder
- Overall Contact Length
- 0.333 8.45mm
- Din Conformance
- NO
- Max Current Rating
- 2A
- Iec Conformance
- NO
- Contact Finish Mating
- Tin
- Material Flammability Rating
- UL94 V-0
- Style
- Board to Cable/Wire
- Kurşunsuz Kodu
- yes
- Depth
- 4.5mm
- Uzunluk
- 31.9mm
- ECCN Kodu
- EAR99
- Shrouding
- Shrouded - 4 Wall
- Parça Durumu
- Active
- Insulation Height
- 0.236 6.00mm
