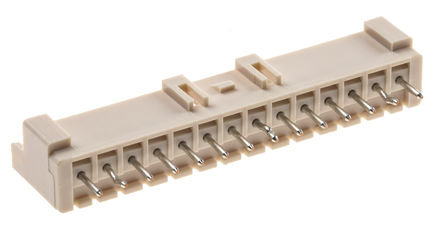

B14B-XASK-1(LF)(SN)

Specifications

Din Conformance

NO

Terminal

Press-Fit, Solder

Akım Değeri

3A

Ul Flammability Code

94V-0

Terminal Adımı

2.5mm

RoHS Durumu

RoHS Compliant

Contact Materials

Copper Alloy

Filter Feature

NO

Contact Length Post

0.134 3.40mm

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Through Hole

Option

GENERAL PURPOSE

JESD-609 Kodu

e3

Stack Height Mating

11.3mm

Additional Feature

TOP ENTRY, SHROUDED

Pitch Mating

0.098 2.50mm

Fabrika Tedarik Süresi

18 Weeks

Insulation Color

Natural

Fastening Type

Locking Ramp

Contact Type

Male Pin

Yayın Yılı

2005

Kurşunsuz

Lead Free

Number Of Positions Loaded

All

Contact Shape

Circular

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-25°C~85°C

Connector Type

Header

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Insulation Height

0.346 8.80mm

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Seri

XA

Sıra Sayısı

1

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Ambalaj

Bulk

Contact Finish Mating

Tin
