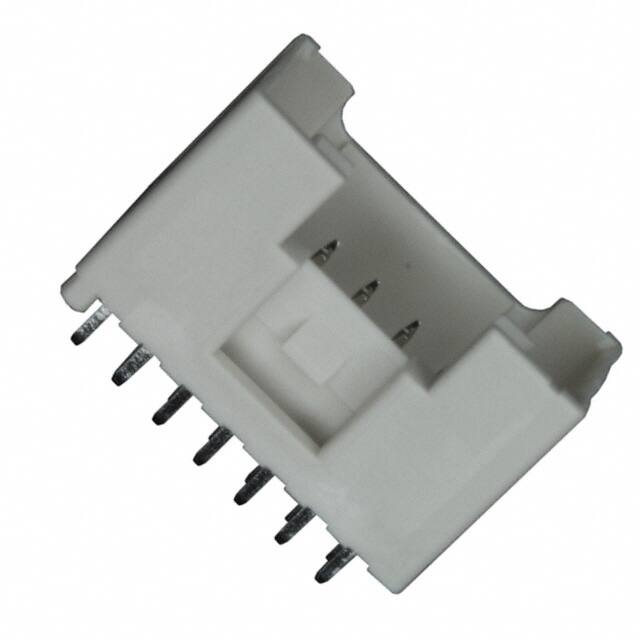

B14B-PUDSS-1(LF)(SN)

Specifications

Pitch Mating

0.079 2.00mm

Fabrika Tedarik Süresi

16 Weeks

Insulation Color

Natural

Yayın Yılı

2011

Contact Type

Male Pin

Fastening Type

Latch Holder

REACH Uyumluluk Kodu

unknown

Stack Height Mating

11mm

Option

GENERAL PURPOSE

JESD-609 Kodu

e3

Additional Feature

POLARIZED, TOP ENTRY, SHROUDED

Montaj

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Row Spacing Mating

0.079 (2.00mm)

Mil Conformance

NO

Contact Length Post

0.122 3.10mm

Filter Feature

NO

Current Rating Amps

3A

Ul Flammability Code

94V-0

Contact Materials

Copper Alloy

RoHS Durumu

RoHS Compliant

Din Conformance

NO

Terminal

Solder

Iec Conformance

NO

Nominal Gerilim

250V

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Pozisyon Sayısı

14

Contact Finish Mating

Tin

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Seri

PUD

Sıra Sayısı

2

Insulation Height

0.378 9.60mm

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-25°C~85°C

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled
