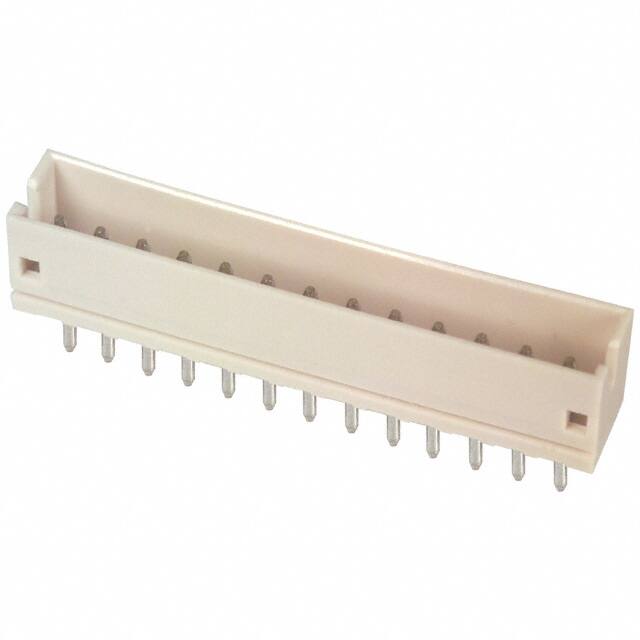

B13B-ZR(LF)(SN)

Specifications

Stack Height Mating

5.6mm

Lead Pitch

1.5mm

Parça Durumu

Active

Gender

Male

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Contact Type

Male Pin

Insulation Height

0.177 4.50mm

Nominal Gerilim

50V

Fabrika Tedarik Süresi

16 Weeks

RoHS Durumu

RoHS Compliant

Pitch Mating

0.059 1.50mm

Contact Length Post

0.106 2.69mm

Mil Conformance

NO

HTS Kodu

8536.69.40.40

Additional Feature

SHROUDED, TOP ENTRY

Filter Feature

NO

Sıra Sayısı

1

Çalışma Sıcaklığı

-25°C~85°C

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2005

Fastening Type

Detent Lock

Din Conformance

NO

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Contact Shape

Circular

Pozisyon Sayısı

13

Uzunluk

21mm

Material Flammability Rating

UL94 V-0

Housing Color

Natural

Contact Finish Mating

Tin

Montaj

Through Hole

Seri

ZH

Genişlik

3.5mm

JESD-609 Kodu

e3

Contact Materials

Brass

Number Of Positions Loaded

All

Housing Material

Nylon

Montaj Tipi

Through Hole

Terminal

Press-Fit, Solder
