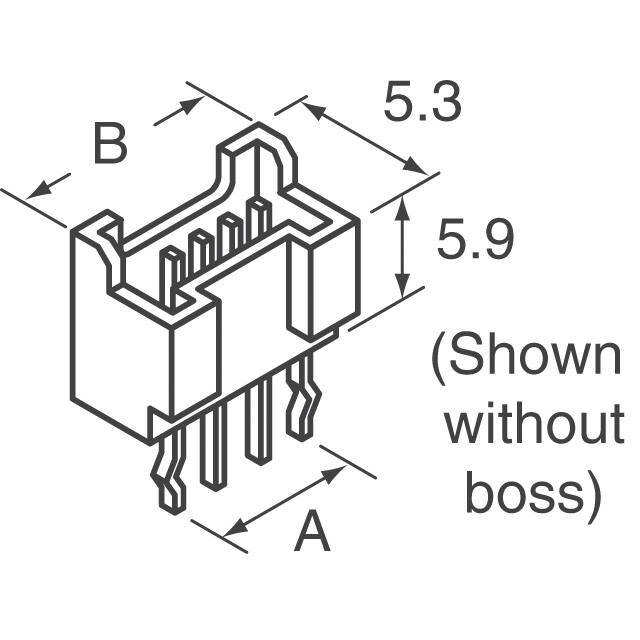

B13B-PASK(LF)(SN)

Specifications

Seri

PA

Contact Type

Male Pin

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Montaj

Through Hole

Parça Durumu

Active

Contact Finish Mating

Tin

Housing Color

White

Stack Height Mating

9.9mm 14.7mm 14.9mm

Material Flammability Rating

UL94 V-0

Contact Materials

Copper Alloy

Contact Length Post

0.118 3.00mm

Pitch Mating

0.079 2.00mm

Fabrika Tedarik Süresi

18 Weeks

RoHS Durumu

RoHS Compliant

Nominal Gerilim

250V

Insulation Height

0.303 7.70mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire

Terminal

Kinked Pin, Solder

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-25°C~85°C

Sıra Sayısı

1

Number Of Positions Loaded

All

Overall Contact Length

0.319 8.10mm

Pozisyon Sayısı

13

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Current Rating Amps

3A

Contact Lengthmating

0.126 3.20mm

Insulation Color

Natural

Ambalaj

Bulk

Contact Shape

Square

Kurşunsuz

Lead Free

Yayın Yılı

2005

Fastening Type

Locking Ramp
