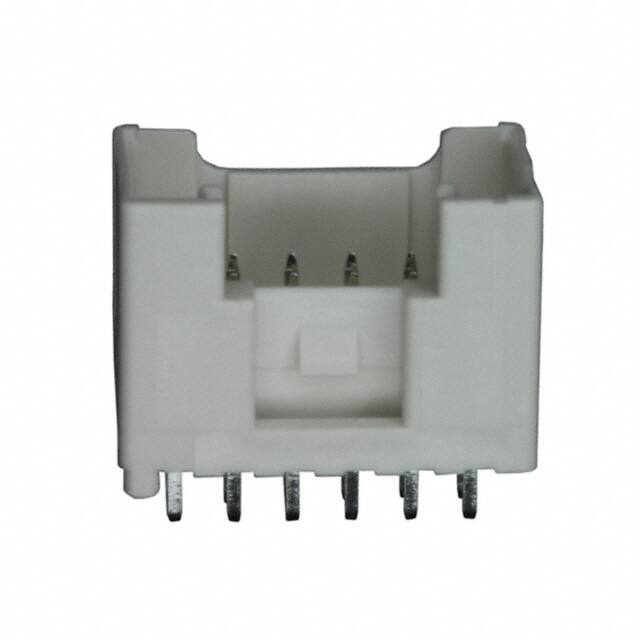

B12B-PUDSS-1(LF)(SN)

Specifications

Number Of Positions Loaded

All

Housing Material

Polyamide

Contact Resistance

20mOhm

Montaj Tipi

Through Hole

Terminal

Solder

Iec Conformance

NO

Option

GENERAL PURPOSE

Akım Değeri

3A

Kurşunsuz

Lead Free

Ul Flammability Code

94V-0

Ambalaj

Bulk

Insulation Color

Natural

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Material Flammability Rating

UL94 V-0

Uzunluk

14mm

Max Current Rating

3A

Row Spacing Mating

0.079 (2.00mm)

Housing Color

Beige

Max Voltage Rating Ac

250V

Özellikler

Board Guide

Contact Finish Mating

Tin

Montaj

Through Hole

Seri

PUD

Contact Plating

Copper, Tin

JESD-609 Kodu

e3

Contact Materials

Copper Alloy

Orientation

Straight, Vertical

Sıra Sayısı

2

Filter Feature

NO

REACH Uyumluluk Kodu

unknown

Çalışma Sıcaklığı

-25°C~85°C

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Latch Holder

Yayın Yılı

2010

Depth

8.3mm

Din Conformance

NO

Kurşunsuz Kodu

yes

Mixed Contacts

NO
