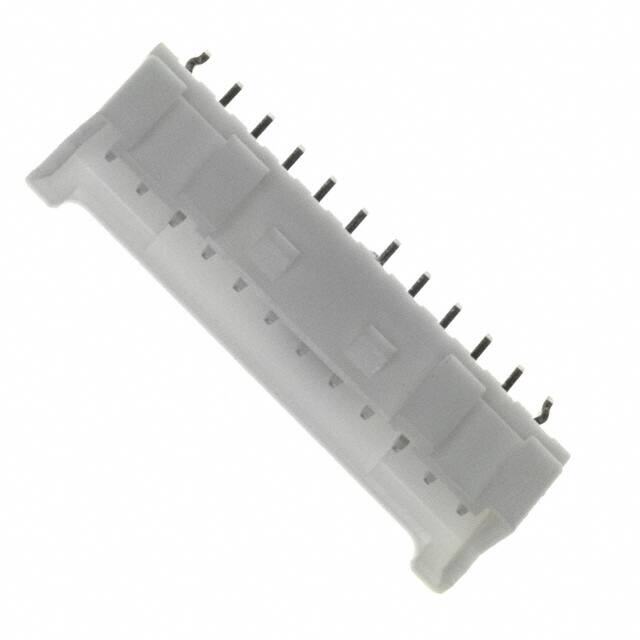

B12B-PASK(LF)(SN)

Specifications

Contact Shape

Square

Ambalaj

Bulk

Ul Flammability Code

94V-0

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Overall Contact Length

0.319 8.10mm

Pozisyon Sayısı

12

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Insulation Color

Natural

Contact Lengthmating

0.126 3.20mm

Current Rating Amps

3A

Option

GENERAL PURPOSE

Fastening Type

Locking Ramp

Yayın Yılı

2005

Kurşunsuz

Lead Free

Din Conformance

NO

Montaj Tipi

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire

Terminal

Kinked Pin, Solder

Iec Conformance

NO

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-25°C~85°C

Filter Feature

NO

Sıra Sayısı

1

Fabrika Tedarik Süresi

18 Weeks

RoHS Durumu

RoHS Compliant

Mil Conformance

NO

Contact Materials

Copper Alloy

Pitch Mating

0.079 2.00mm

Contact Length Post

0.118 3.00mm

Terminal Adımı

2mm

Insulation Height

0.303 7.70mm

Nominal Gerilim

250V

Montaj

Through Hole

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Seri

PA

Contact Type

Male Pin

Stack Height Mating

9.9mm 14.7mm 14.9mm
