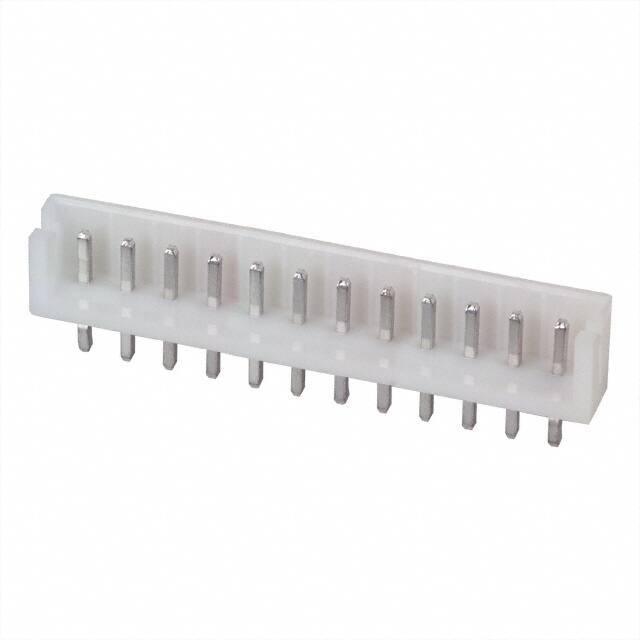

B12B-EH-A(LF)(SN)

Specifications

Material Flammability Rating

UL94 V-0

Stack Height Mating

8.1mm

Lead Pitch

2.5mm

Housing Color

White

Contact Finish Mating

Tin

Gender

Male

Parça Durumu

Active

Insulation Materials

Polyamide (PA66), Nylon 6/6

Montaj

Through Hole

Contact Type

Male Pin

Seri

EH

Insulation Height

0.236 6.00mm

Nominal Gerilim

250V

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

18 Weeks

JESD-609 Kodu

e3

Pitch Mating

0.098 2.50mm

Contact Length Post

0.126 3.20mm

Contact Materials

Brass

Mil Conformance

NO

Additional Feature

POLARIZED, TOP ENTRY, SHROUDED

Number Of Positions Loaded

All

Orientation

Straight

Sıra Sayısı

1

Filter Feature

NO

Çalışma Sıcaklığı

-25°C~85°C

Housing Material

Nylon

Montaj Tipi

Through Hole

Iec Conformance

NO

Terminal

Press-Fit, Solder

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Friction Lock

Yayın Yılı

2005

Option

GENERAL PURPOSE

Akım Değeri

3A

Din Conformance

NO

Kurşunsuz

Lead Free

Kurşunsuz Kodu

yes

Mixed Contacts

NO
