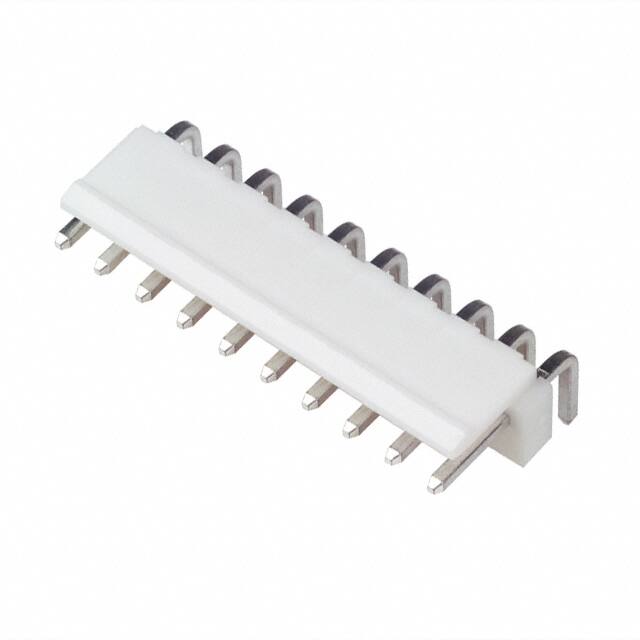

B10PS-VH(LF)(SN)

Specifications

Insulation Materials

Polyamide (PA66), Nylon 6/6

Housing Color

Natural

Fastening Type

Locking Ramp

Lead Pitch

3.96mm

Akım Değeri

10A

Option

GENERAL PURPOSE

ECCN Kodu

EAR99

Montaj

Through Hole

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Uzunluk

39.5mm

Kurşunsuz Kodu

yes

Gender

Male

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

VH

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Tin

Din Conformance

NO

Insulation Height

0.335 8.51mm

Contact Materials

Brass

Pitch Mating

0.156 3.96mm

HTS Kodu

8536.69.40.40

Ul Flammability Code

94V-0

Parça Durumu

Active

Reach Svhc

No SVHC

Mil Conformance

NO

Contact Length Post

0.142 3.60mm

Genişlik

9.4mm

Contact Lengthmating

0.303 7.70mm

JESD-609 Kodu

e3

Contact Type

Male Pin

Contact Shape

Square

Mixed Contacts

NO

Connector Type

Header

Montaj Tipi

Through Hole, Right Angle

Kurşunsuz

Lead Free

Shrouding

Shrouded - 1 Wall

Fabrika Tedarik Süresi

18 Weeks

Style

Board to Cable/Wire

Filter Feature

NO
