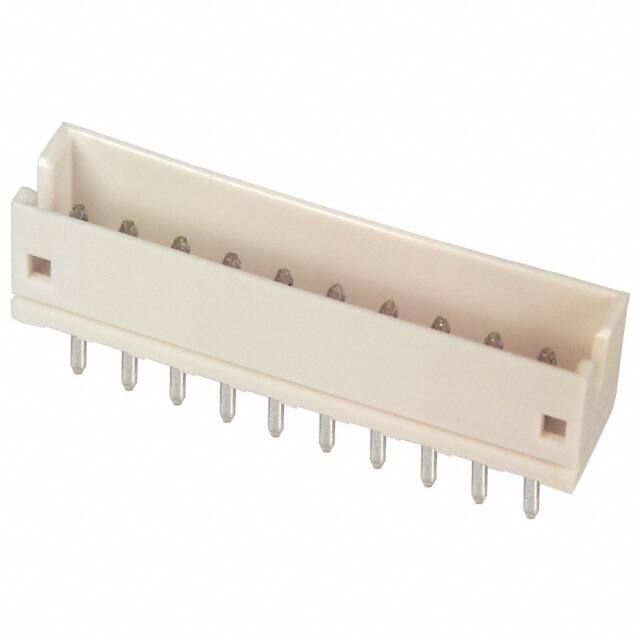

B10B-ZR(LF)(SN)

Specifications

Contact Length Post

0.106 2.69mm

Mil Conformance

NO

Parça Durumu

Active

Ul Flammability Code

94V-0

HTS Kodu

8536.69.40.40

Pitch Mating

0.059 1.50mm

Contact Materials

Brass

Insulation Height

0.177 4.50mm

Din Conformance

NO

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Tin

Seri

ZH

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Montaj

Through Hole

ECCN Kodu

EAR99

Option

GENERAL PURPOSE

Lead Pitch

1.5mm

Akım Değeri

1A

Fastening Type

Detent Lock

Housing Color

Natural

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Additional Feature

SHROUDED, TOP ENTRY

Orientation

Straight

Nominal Gerilim

50V

Sıra Sayısı

1

Çalışma Sıcaklığı

-25°C~85°C

Housing Material

Nylon

Yayın Yılı

2005

Iec Conformance

NO

Stack Height Mating

5.6mm

Ambalaj

Bulk

Terminal

Press-Fit, Solder

Overall Contact Length

0.256 6.50mm

Pozisyon Sayısı

10

Filter Feature

NO

Style

Board to Cable/Wire
