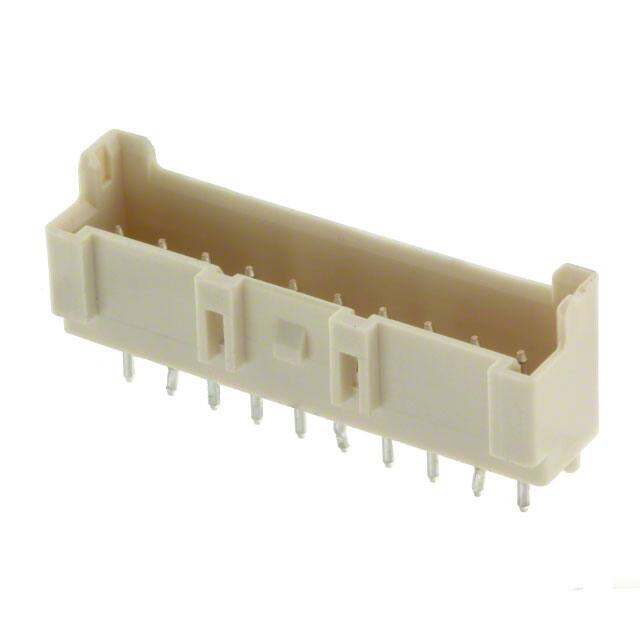

B10B-XASK-1-A(LF)(SN)

Specifications

Kurşunsuz Kodu

yes

Contact Shape

Circular

Contact Type

Male Pin

Current Rating Amps

3A

JESD-609 Kodu

e3

Montaj Tipi

Through Hole

Connector Type

Header

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Terminal Adımı

2.5mm

Fabrika Tedarik Süresi

16 Weeks

Kurşunsuz

Lead Free

Shrouding

Shrouded - 4 Wall

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Fastening Type

Locking Ramp

Montaj

Through Hole

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-25°C~85°C

Iec Conformance

NO

Yayın Yılı

2008

Mil Conformance

NO

Nominal Gerilim

250V

Contact Length Post

0.118 3.00mm

Sıra Sayısı

1

Additional Feature

TOP ENTRY, SHROUDED

Contact Finish Mating

Tin

RoHS Durumu

RoHS Compliant

Pozisyon Sayısı

10

Filter Feature

NO

Insulation Color

Natural

Seri

XA

Style

Board to Cable/Wire

Contact Plating

Lead, Tin

Terminal

Press-Fit, Solder

Insulation Height

0.346 8.80mm

Din Conformance

NO

Ul Flammability Code

94V-0

Pitch Mating

0.098 2.50mm
