Volume pricing
- 1+ pcs$0.23
- 10+ pcs$0.22
- 100+ pcs$0.20
- 500+ pcs$0.19
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

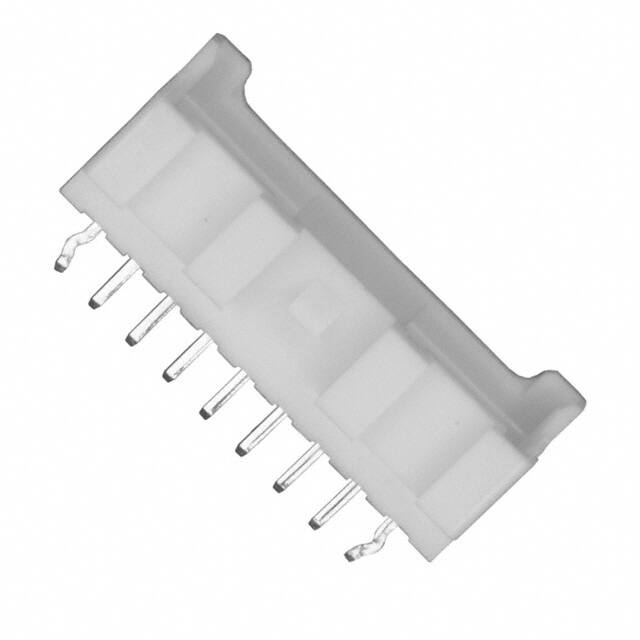

Specifications
- JESD-609 Kodu
- e3
- Fastening Type
- Locking Ramp
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Insulation Color
- Natural
- Contact Type
- Male Pin
- Number Of Positions Loaded
- All
- Stack Height Mating
- 9.9mm 14.7mm 14.9mm
- Iec Conformance
- NO
- Çalışma Sıcaklığı
- -25°C~85°C
- Overall Contact Length
- 0.319 8.10mm
- Terminal
- Kinked Pin, Solder
- RoHS Durumu
- RoHS Compliant
- Montaj
- Through Hole
- Kurşunsuz
- Lead Free
- Din Conformance
- NO
- Filter Feature
- NO
- Material Flammability Rating
- UL94 V-0
- Contact Lengthmating
- 0.126 3.20mm
- Pozisyon Sayısı
- 9
- Option
- GENERAL PURPOSE
- Contact Shape
- Square
- Mixed Contacts
- NO
- Kurşunsuz Kodu
- yes
- Connector Type
- Header
- Yayın Yılı
- 2005
- Additional Feature
- SHROUDED, TOP ENTRY
- Insulation Materials
- Polybutylene Terephthalate (PBT), Glass Filled
- Terminal Adımı
- 2mm
- Style
- Board to Cable/Wire
- Seri
- PA
- Shrouding
- Shrouded - 4 Wall
- Mil Conformance
- NO
- Contact Finish Mating
- Tin
- Nominal Gerilim
- 250V
- Housing Color
- White
- Parça Durumu
- Active
- Insulation Height
- 0.303 7.70mm
- Sıra Sayısı
- 1
- Contact Materials
- Copper Alloy
- Fabrika Tedarik Süresi
- 16 Weeks
