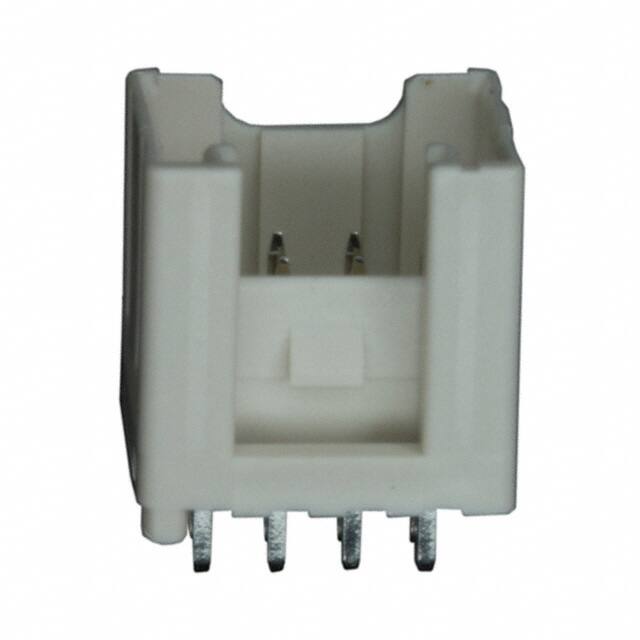

B08B-PUDSS-1(LF)(SN)

Specifications

Filter Feature

NO

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

8

Terminal

Solder

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Montaj

Through Hole

Number Of Positions Loaded

All

Iec Conformance

NO

Çalışma Sıcaklığı

-25°C~85°C

Stack Height Mating

11mm

Fastening Type

Latch Holder

JESD-609 Kodu

e3

Contact Type

Male Pin

Insulation Color

Natural

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.079 2.00mm

Row Spacing Mating

0.079 (2.00mm)

Reach Svhc

Unknown

Current Rating Amps

3A

Ambalaj

Bulk

Fabrika Tedarik Süresi

18 Weeks

Gender

Male

Montaj Tipi

Through Hole

Ul Flammability Code

94V-0

Contact Length Post

0.122 3.10mm

Style

Board to Cable/Wire

Additional Feature

POLARIZED, TOP ENTRY, SHROUDED

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Parça Durumu

Active

Insulation Height

0.378 9.60mm

Sıra Sayısı

2

Contact Materials

Copper Alloy

Nominal Gerilim

250V

Contact Finish Mating

Tin

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Seri

PUD

ECCN Kodu

EAR99
