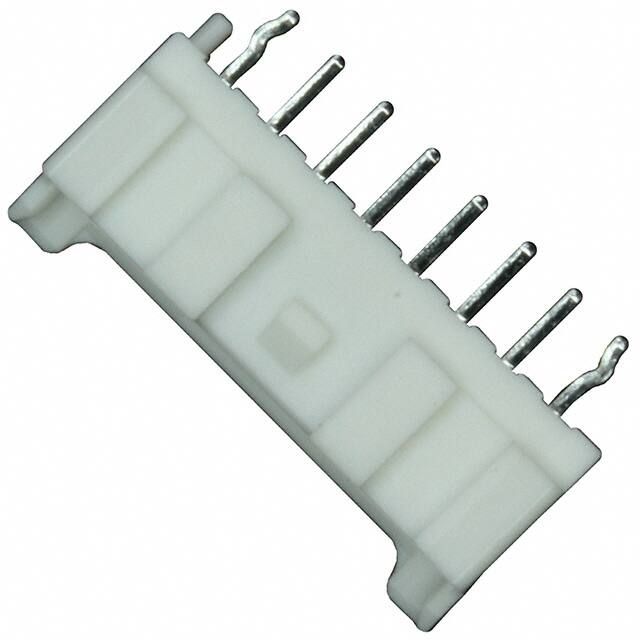

B08B-PASK-1(LF)(SN)

Specifications

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-25°C~85°C

Iec Conformance

NO

Stack Height Mating

9.9mm 14.7mm 14.9mm

Fastening Type

Locking Ramp

JESD-609 Kodu

e3

Contact Type

Male Pin

Insulation Color

Natural

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Lengthmating

0.126 3.20mm

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Filter Feature

NO

Pozisyon Sayısı

8

Terminal

Kinked Pin, Solder

Overall Contact Length

0.319 8.10mm

Kurşunsuz

Lead Free

Montaj

Through Hole

RoHS Durumu

RoHS Compliant

Terminal Adımı

2mm

Style

Board to Cable/Wire

Additional Feature

SHROUDED, TOP ENTRY

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Materials

Copper Alloy

Sıra Sayısı

1

Insulation Height

0.303 7.70mm

Parça Durumu

Active

Orientation

Straight

Housing Color

White

Seri

PA

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Contact Finish Mating

Tin

Nominal Gerilim

250V

Mixed Contacts

NO

Contact Shape

Square

Option

GENERAL PURPOSE

Yayın Yılı

2001

Özellikler

Board Guide

Connector Type

Header
