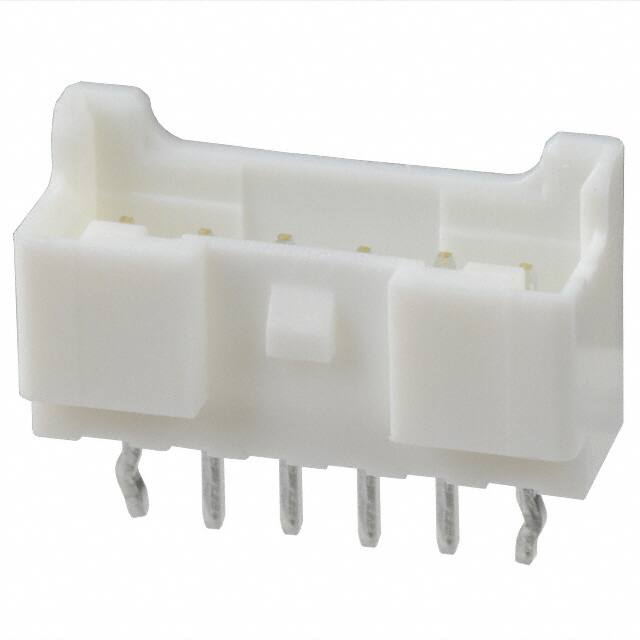

B06B-PASK(LF)(SN)

Specifications

Housing Material

Nylon

Current Rating Amps

3A

Pitch Mating

0.079 2.00mm

Ul Flammability Code

94V-0

Fabrika Tedarik Süresi

16 Weeks

Contact Materials

Copper Alloy

Parça Durumu

Active

Sıra Sayısı

1

Housing Color

White

Contact Finish Mating

Tin

Seri

PA

Terminal Adımı

2mm

Yükseklik

7.7mm

Connector Type

Header

Contact Shape

Square

ECCN Kodu

EAR99

Filter Feature

NO

Din Conformance

NO

Number Of Contacts

6

Terminal

Kinked Pin, Solder

Overall Contact Length

0.319 8.10mm

Stack Height Mating

9.9mm 14.7mm 14.9mm

Number Of Positions Loaded

All

Contact Type

Male Pin

Insulation Color

Natural

JESD-609 Kodu

e3

Ambalaj

Bulk

Genişlik

5.3mm

Montaj Tipi

Through Hole

Contact Length Post

0.118 3.00mm

Insulation Height

0.303 7.70mm

Mil Conformance

NO

Nominal Gerilim

250V

Shrouding

Shrouded - 4 Wall

Style

Board to Cable/Wire

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Additional Feature

SHROUDED, TOP ENTRY

Yayın Yılı

2005

Kurşunsuz Kodu

yes

Mixed Contacts

NO
