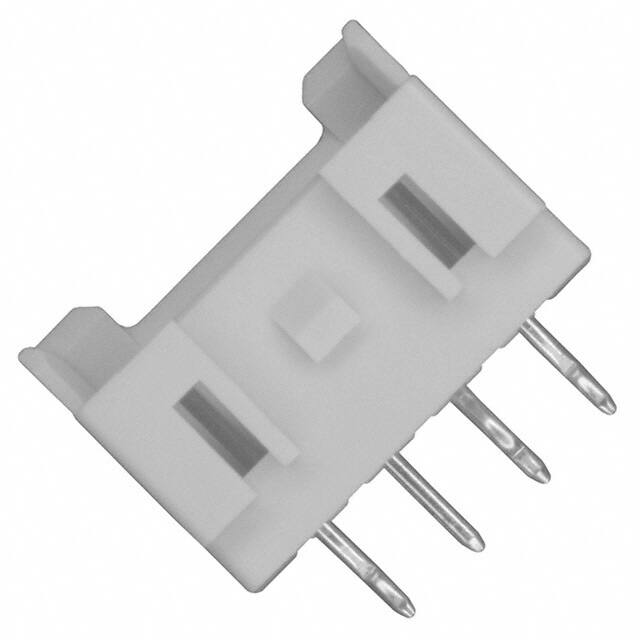

B04B-XASK-1(LF)(SN)

Specifications

Kurşunsuz

Lead Free

Montaj

PCB, Through Hole

RoHS Durumu

RoHS Compliant

Weight

28.349523g

Uzunluk

6.096mm

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Locking Ramp

Flammability Rating

UL94 V-0

Insulation Resistance

1GOhm

Çalışma Sıcaklığı

-25°C~85°C

Iec Conformance

NO

Renk

Beige, Natural

Montaj Tipi

Through Hole

Contact Length Post

0.134 3.40mm

Ambalaj

Bulk

Voltage Rated Dc

250V

Genişlik

12.5mm

Akım Değeri

3A

Yayın Yılı

2004

Manufacturer Package Identifier

B04B-XASK-1(LF)(SN)

Material

Nylon

Number Of Poles

4

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Option

GENERAL PURPOSE

Insulation Height

0.346 8.80mm

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Style

Board to Cable/Wire

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Additional Feature

TOP ENTRY, SHROUDED

Terminal

Press-Fit, Solder

Contact Resistance

10mOhm

Lead Pitch

2.5mm

Voltage Rated Ac

250V

Din Conformance

NO

Filter Feature

NO

Contact Type

Male Pin

Insulation Color

Natural
