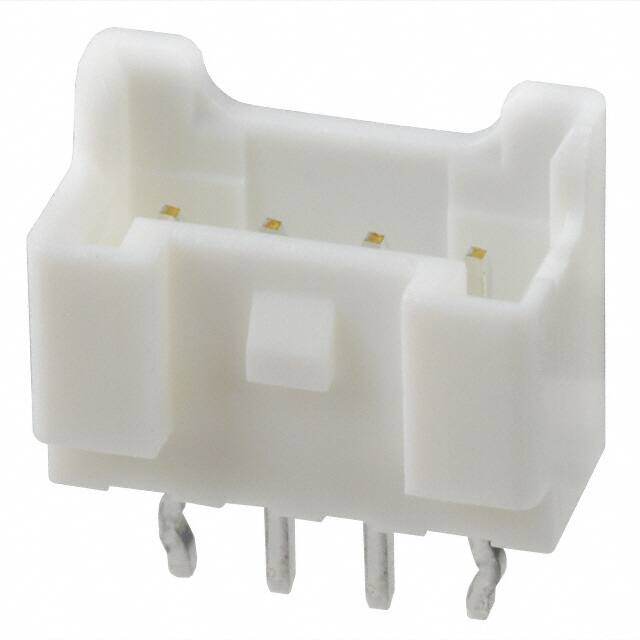

B04B-PASK(LF)(SN)

Specifications

Mixed Contacts

NO

Contact Shape

Square

Option

GENERAL PURPOSE

Yayın Yılı

2005

Connector Type

Header

Kurşunsuz Kodu

yes

Terminal Adımı

2mm

Style

Board to Cable/Wire

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Materials

Copper Alloy

Parça Durumu

Active

Insulation Height

0.303 7.70mm

Sıra Sayısı

1

Housing Color

White

Nominal Gerilim

250V

Contact Finish Mating

Tin

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Seri

PA

Fabrika Tedarik Süresi

16 Weeks

Montaj Tipi

Through Hole

Contact Length Post

0.118 3.00mm

Pitch Mating

0.079 2.00mm

Ambalaj

Bulk

Current Rating Amps

3A

Fastening Type

Locking Ramp

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Natural

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-25°C~85°C

Iec Conformance

NO

Stack Height Mating

9.9mm 14.7mm 14.9mm

Terminal

Kinked Pin, Solder

Overall Contact Length

0.319 8.10mm

Montaj

Through Hole

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Contact Lengthmating

0.126 3.20mm

Material Flammability Rating

UL94 V-0
