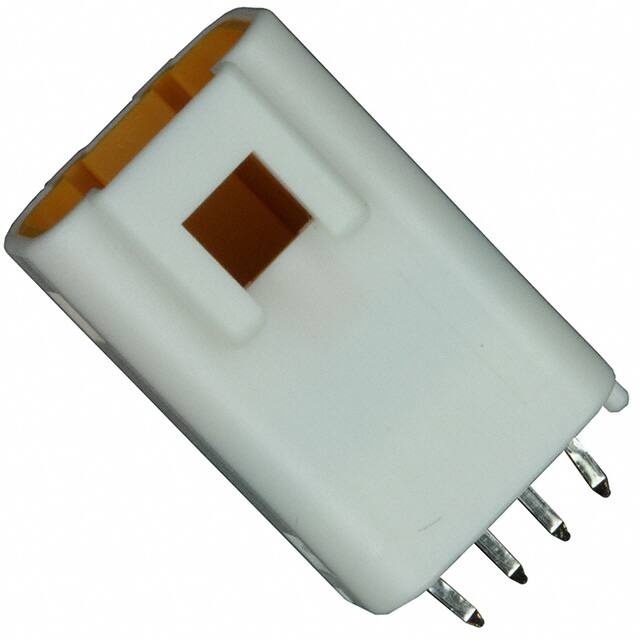

B04B-JWPF-SK-R(LF)(SN)

Specifications

Insulation Height

0.654 16.61mm

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Style

Board to Cable/Wire

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Yayın Yılı

2005

Kurşunsuz Kodu

yes

Material

PBT

Mixed Contacts

NO

Akım Değeri

3A

Ambalaj

Bulk

Voltage Rated Dc

100V

Montaj Tipi

Through Hole

Contact Length Post

0.130 3.30mm

Iec Conformance

NO

Çalışma Sıcaklığı

-55°C~85°C

Renk

White

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Insulation Resistance

800MOhm

Pozisyon Sayısı

4

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Montaj

Through Hole

Kurşunsuz

Lead Free

Parça Durumu

Active

Sıra Sayısı

1

Contact Materials

Copper Alloy

Contact Finish Mating

Tin

Seri

JWPF

Özellikler

Board Guide

Connector Type

Header

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Reach Svhc

No SVHC

Gender

Male

Ingress Protection

Dust Tight, Waterproof

Fabrika Tedarik Süresi

25 Weeks

Stack Height Mating

21mm
