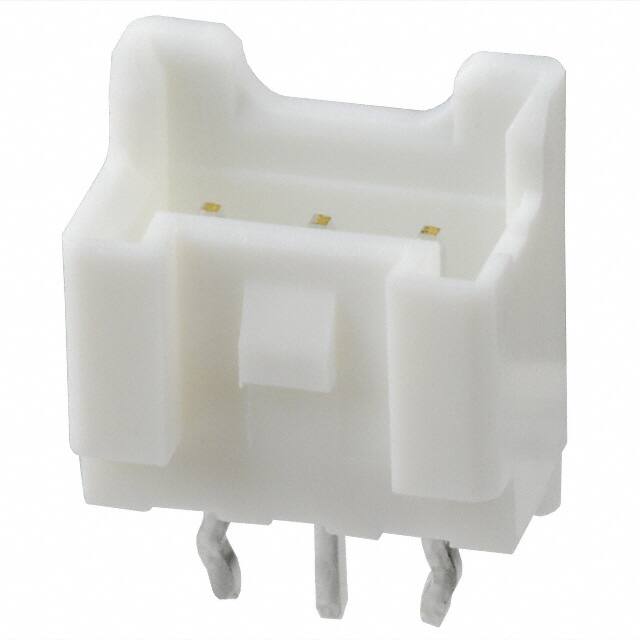

B03B-PASK-1(LF)(SN)

Specifications

Contact Lengthmating

0.126 3.20mm

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Filter Feature

NO

Pozisyon Sayısı

3

Terminal

Kinked Pin, Solder

Overall Contact Length

0.319 8.10mm

Kurşunsuz

Lead Free

Montaj

Through Hole

RoHS Durumu

RoHS Compliant

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-25°C~85°C

Iec Conformance

NO

Stack Height Mating

9.9mm 14.7mm 14.9mm

Fastening Type

Locking Ramp

JESD-609 Kodu

e3

Contact Type

Male Pin

Insulation Color

Natural

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.079 2.00mm

Ambalaj

Bulk

Akım Değeri

3A

Fabrika Tedarik Süresi

16 Weeks

Montaj Tipi

Through Hole

Ul Flammability Code

94V-0

Contact Length Post

0.118 3.00mm

Style

Board to Cable/Wire

Terminal Adımı

2mm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Materials

Copper Alloy

Parça Durumu

Active

Insulation Height

0.303 7.70mm

Sıra Sayısı

1

Orientation

Straight

Housing Color

White

Nominal Gerilim

250V

Contact Finish Mating

Tin

Mil Conformance

NO

Seri

PA

Shrouding

Shrouded - 4 Wall
