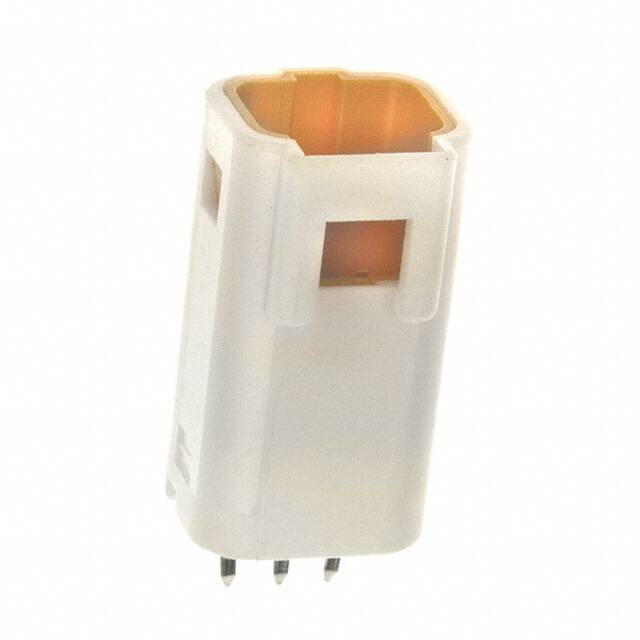

B03B-JWPF-SK-R(LF)(SN)

Specifications

Max Current Rating

3A

Çalışma Sıcaklığı

-55°C~85°C

Iec Conformance

NO

Renk

White

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Resistance

800MOhm

Fastening Type

Latch Holder

Flammability Rating

UL94 V-0

Pozisyon Sayısı

3

Max Voltage Rating Ac

100V

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Montaj

Through Hole

RoHS Durumu

RoHS Compliant

Uzunluk

8.4mm

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Insulation Height

0.654 16.61mm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Style

Board to Cable/Wire

Material

PBT

Kurşunsuz Kodu

yes

Yayın Yılı

2005

Mixed Contacts

NO

Ambalaj

Bulk

Voltage Rated Dc

100V

Akım Değeri

3A

Contact Length Post

0.130 3.30mm

Montaj Tipi

Through Hole

Stack Height Mating

21mm

Number Of Positions Loaded

All

Insulation Color

Natural

Empty Shell

NO

Contact Type

Male Pin

JESD-609 Kodu

e3

Voltage Rated Ac

100V

Din Conformance

NO

Filter Feature

NO

Depth

8.4mm

Lead Pitch

2mm
