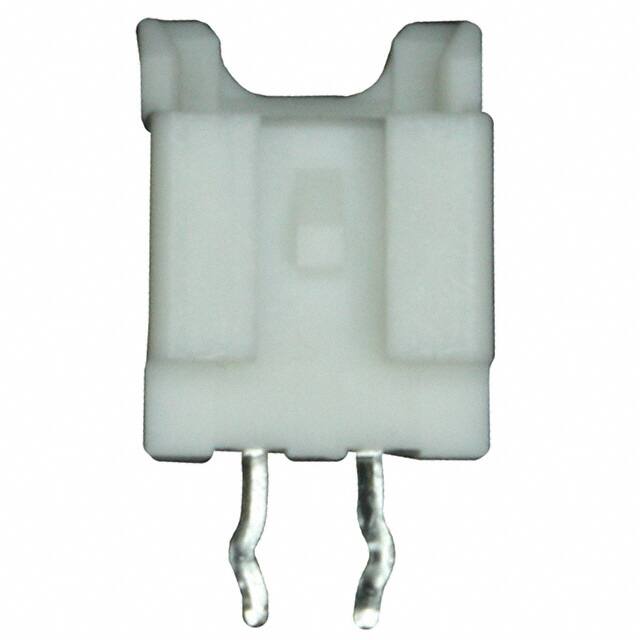

B02B-PASK(LF)(SN)

Specifications

RoHS Durumu

RoHS Compliant

Pozisyon Sayısı

2

Yayın Yılı

2005

Mil Conformance

NO

Style

Board to Cable/Wire

Seri

PA

Nominal Gerilim

250V

Contact Type

Male Pin

Stack Height Mating

9.9mm 14.7mm 14.9mm

Sıra Sayısı

1

Iec Conformance

NO

Manufacturer Package Identifier

B02B-PASK(LF)(SN)

Montaj

Through Hole

Overall Contact Length

0.319 8.10mm

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.126 3.20mm

Mixed Contacts

NO

Pitch Mating

0.079 2.00mm

Çalışma Sıcaklığı

-25°C~85°C

Kurşunsuz Kodu

yes

Contact Materials

Copper Alloy

Parça Durumu

Active

Fabrika Tedarik Süresi

18 Weeks

Contact Finish Mating

Tin

Terminal

Kinked Pin, Solder

Option

GENERAL PURPOSE

Fastening Type

Locking Ramp

Insulation Color

Natural

Ul Flammability Code

94V-0

Contact Shape

Square

Yükseklik

7.7mm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Akım Değeri

3A

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Number Of Positions Loaded

All

Filter Feature

NO

Housing Color

White

Nem Hassasiyeti (MSL)

1 (Unlimited)
