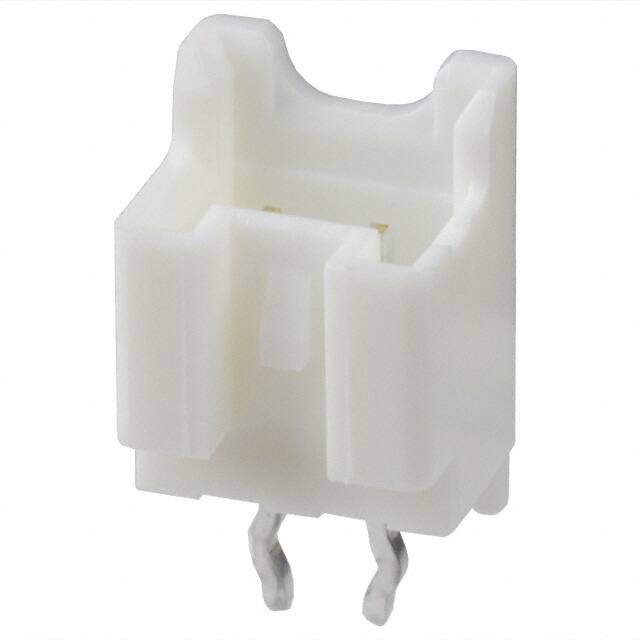

B02B-PASK-1(LF)(SN)

Specifications

Material Flammability Rating

UL94 V-0

Akım Değeri

3A

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Ul Flammability Code

94V-0

Option

GENERAL PURPOSE

Contact Length Post

0.118 3.00mm

Ambalaj

Bulk

Insulation Height

0.303 7.70mm

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

Filter Feature

NO

Number Of Positions Loaded

All

JESD-609 Kodu

e3

Iec Conformance

NO

Stack Height Mating

9.9mm 14.7mm 14.9mm

Style

Board to Cable/Wire

Parça Durumu

Active

Özellikler

Board Guide

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Contact Lengthmating

0.126 3.20mm

Overall Contact Length

0.319 8.10mm

Contact Shape

Square

Insulation Color

Natural

Fastening Type

Locking Ramp

Contact Finish Mating

Tin

Terminal

Kinked Pin, Solder

Fabrika Tedarik Süresi

16 Weeks

Insulation Resistance

1GOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

White

Material

Polybutylene

Din Conformance

NO

Montaj

Through Hole

Sıra Sayısı

1

Contact Type

Male Pin

Seri

PA

Nominal Gerilim

250V

Yayın Yılı

2005

Mil Conformance

NO
