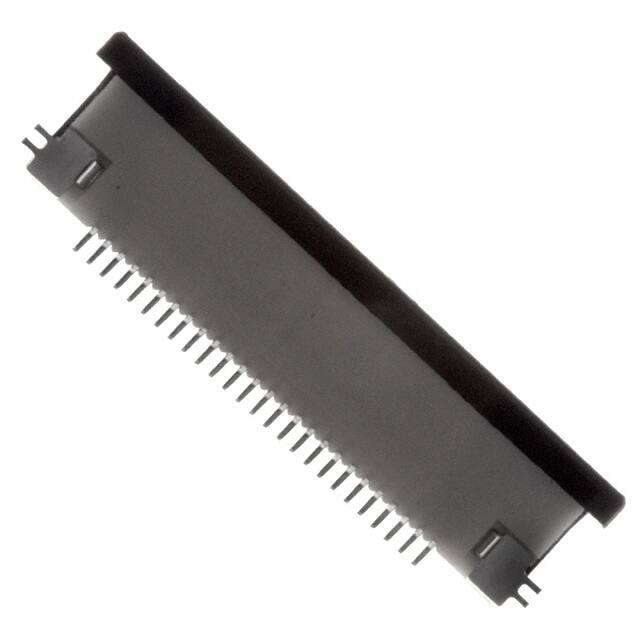

26FLZ-SM2-TB(LF)(SN)

Specifications

Kurşunsuz Kodu

yes

Akım Değeri

500mA

Housing Color

Gray

Filter Feature

NO

Flat Flex Type

FFC, FPC

Housing Material

Polyamide (PA6T), Nylon 6T

Seri

FLZ

Fabrika Tedarik Süresi

16 Weeks

Din Conformance

NO

Current Rating Amps

0.5A

JESD-609 Kodu

e3

Çalışma Sıcaklığı

-25°C~85°C

Contact Gender

FEMALE

Flammability Rating

UL94 V-0

Nominal Gerilim

50V

Pozisyon Sayısı

26

Montaj Tipi

Surface Mount, Right Angle

Contact Materials

Phosphor Bronze

Height Above Board

0.079 2.00mm

Actuatorcolor

Black

Mil Conformance

NO

Ambalaj

Tape & Reel (TR)

Connectorcontact Type

Contacts, Top

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Mixed Contacts

NO

Contact Finish

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ul Flammability Code

94V-0

Pitch

0.020 0.50mm

Iec Conformance

NO

Locking Feature

Slide Lock

Sıra Sayısı

1

Ffc Fcb Thickness

0.30mm

Terminal

Solder

Parça Durumu

Active

Montaj

Surface Mount

Yayın Yılı

2005

Total Number Of Contacts

26

Option

GENERAL PURPOSE

Cable End Type

Tapered
